2500LB Integral Flanged Globe Valve, Bolted Bonnet
Model Number: YV-GBV-16
Key Specifications / Features
2500LB Integral Flanged Globe Valve Manufacturer: 2500LB Integral Flanged Globe Valve, 1/2-2 Inch, DN15-DN50, Bolted Bonnet, Full Port, Integral Backseat.
Detail Information
Design Construction:
ASME B16.34, BS 5352
Full port type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Marking MSS SP25
Integral backseat
Integral body flanges
Outside Screw and Yoke (OS&Y)
Loose Disc Stem Assembly
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Self aligning two piece packing gland
Ratings:
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

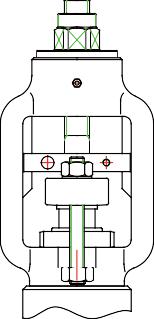

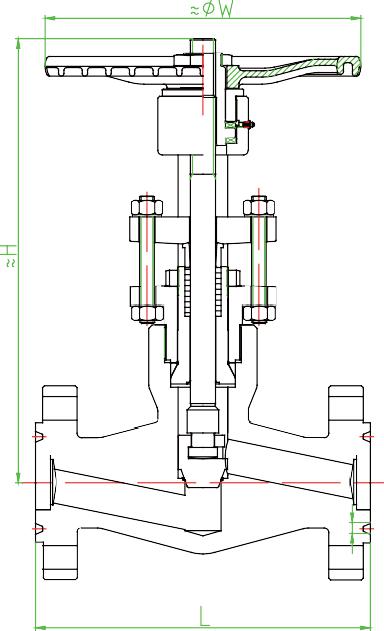

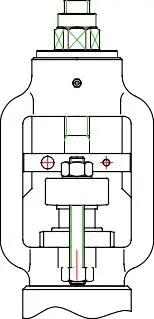

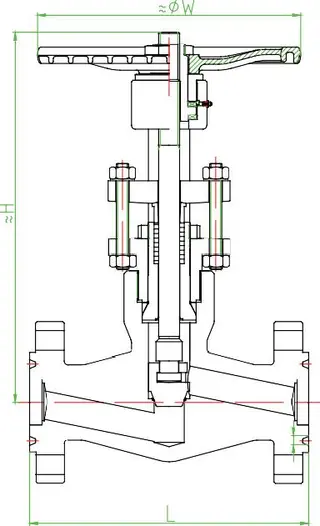

2500 LB |
DN | L |
H |
W |
P |
A |
B |
C |
T |
F |
n-  |
kg |
|
| inch | mm | ||||||||||||
| 1/2 | 15 | 264 | 333 | 180 | 42.9 | 65.1 | 89.0 | 133 | 30.5 | 6.4 | 4-23 | 18.0 | |
| 3/4 | 20 | 273 | 333 | 180 | 50.8 | 73.0 | 95.2 | 140 | 32.0 | 6.4 | 4-23 | 20.5 | |
| 1 | 25 | 308 | 333 | 180 | 60.3 | 82.5 | 107.9 | 159 | 35.0 | 6.4 | 4-26 | 23.0 | |
| 11/4 | 32 | 352.2 | 383 | 200 | 72.2 | 101.6 | 130.2 | 184 | 38.5 | 7.93 | 4-29 | 42.6 | |
| 11/2 | 40 | 387.2 | 420 | 200 | 82.6 | 114.0 | 146.0 | 203 | 44.5 | 7.93 | 4-32 | 45.0 | |
