150LB-800LB Gate Valve, Welded Bonnet, Full & Standard Port
Model Number: YV-GTV-10
Key Specifications / Features
150LB-800LB Gate Valve Manufacturer: 150LB-800LB Gate Valve, 1/4-2 Inch, DN8-DN50, Welded Bonnet, Full & Standard Port, Outside Screw and Yoke(OS&Y).
Detail Information
Design Construction:
API, ASME B16.34, BS 5352
Testing according to api 598
Body Bonnet Weld to ASME IX
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Integal Backseat
Marking MSS SP25
Outside Screw and Yoke(OS&Y)
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

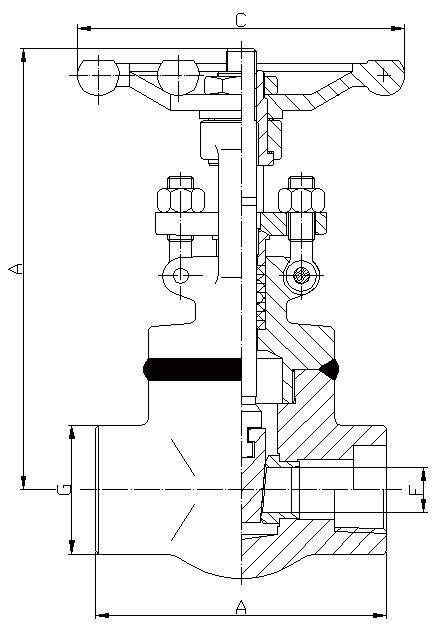

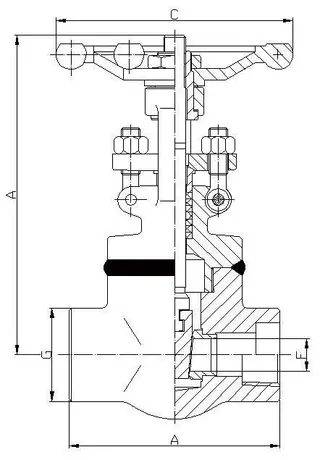

| 150LB-800LB | DN | R.P | mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | - |
| (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | - | |||
| F.P | mm | - | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | ||
| (in) | - | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | |||
| F | R.P | 7 | 10 | 10 | 13 | 18 | 24 | 29 | 36.5 | - | ||
| F.P | - | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | |||
| A | R.P | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 | - | ||
| F.P | - | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 | |||
| H | R.P | 149 | 151 | 151 | 158 | 185 | 239 | 243 | 279 | - | ||
| F.P | - | 149 | 151 | 158 | 158 | 239 | 243 | 279 | 328 | |||
| C | R.P | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 | - | ||
| F.P | - | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | |||
| kg | R.P | 1.9 | 1.9 | 1.9 | 2.1 | 3.2 | 6.9 | 6.9 | 10.4 | - | ||
| F.P | - | 1.9 | 1.9 | 2.1 | 3.2 | 6.9 | 6.9 | 10.4 | 15.8 | |||
