150LB-600LB Integral Flanged Gate Valve, Full Port

Name: 150LB-600LB Integral Flanged Gate Valve, Full Port
Brand: www.valves-uk.com
SKU: YV-GTV-13
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: YV-GTV-13

Key Specifications / Features

150LB-600LB Integral Flanged Gate Valve Manufacturer: 150LB-600LB Integral Flanged Gate Valve, 1/2-2 1/2 Inch, DN10-DN48.5, ASME B16.34, BS 5352.

ASME B16.34 BS 5352 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch 2-1/2 Inch Class 150 Class 300 Class 600

Design Construction:
ASME B16.34, BS 5352
Full port type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Integral body flanges
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

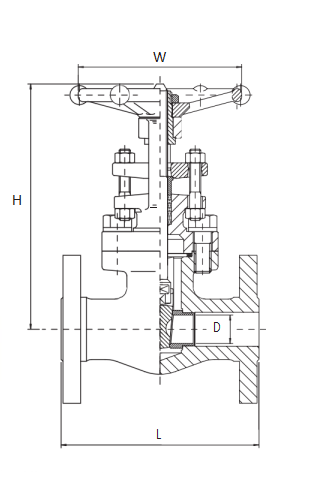

Class	NPS(in)	1/2	3/4	1	11/4	11/2	2	21/2
150	D	10	13	19.1	21	31.8	38.1	48.5
300
600
150	L	108	117	127	140	165	203	216
300		152	178	203	216	229	267	292
600		165	190	216	229	241	292	330
150	H	158	163	193	250	250	291	350
300
600
150	W	100	100	125	160	160	180	240
300
600
150	kg	4.5	6.9	9.8	13.5	19.5	28.0	35.4
300		4.8	7.7	11.0	16.8	21.2	32.6	38.0
600		5.6	7.8	12.5	17.0	23.5	38.8	42.6
