1500LB Integral Flanged Check Valve, Full Port, Bolt Bonnet
Model Number: YV-CKV-11
Key Specifications / Features
1500LB Integral Flanged Check Valve Manufacturer: 1500LB Integral Flanged Check Valve, DN15-DN50, Full Port, Spiral Wound Gasket, Integral Body Flanges.
Detail Information
Design Construction:
ASME B16.34, BS 5352
Full Port Type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Marking MSS SP25
Spiral wound gasket
Integral body flanges
Ring joint type gasket available on request
Spring available on request for Piston and Ball Check Valve
Ratings:
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

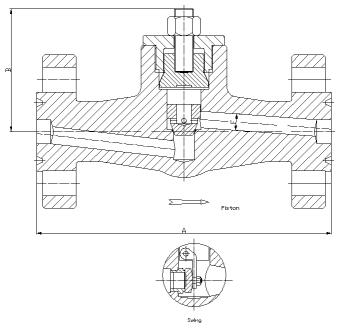

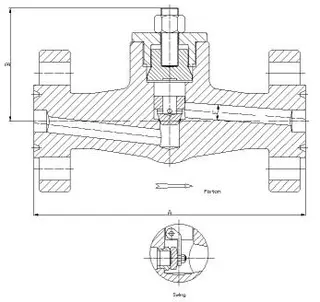

1500 LB |
Full Port | |||||
| Size mm | 15 | 20 | 25 | 40 | 50 | |
| A mm | 216 | 229 | 254 | 305 | 368,5 | |
| B mm | 105 | 125 | 135 | 155 | 195 | |
| F Piston mm F Ball | 12 | 14,5 | 19 | 31 | 40 | |
| F Swing mm | 14 | 18 | 24 | 36,6 | 48 | |
| Weight kg | 7,5 | 11,2 | 14,5 | 26,5 | 50 | |
