1500 LB Integral Flanged Ball Valve, Bolted Bonnet
Key Specifications / Features
1500 LB Integral Flanged Ball Valve Manufacturer: 1500 LB Integral Flanged Ball Valve, DN15-DN50, Bolted Bonnet, Outside Screw and Yoke (OS&Y).
Request a quote
Detail Information
Design Construction:
ASME B16.34, BS 5352
Full port type
Testing according to API 598
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Ring joint type gasket available on request
Marking MSS SP25
Spiral wound gasket
Integral backseat
Integral body flanges
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

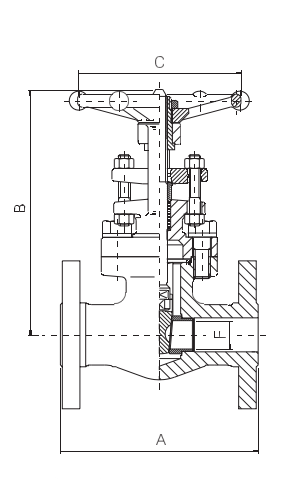

1500 LB |
Full Port | ||||||
| Size | mm | 15 | 20 | 25 | 40 | 50 | |
| A | mm | 216 | 229 | 254 | 305 | 368.5 | |
| B | mm | 215 | 250 | 270 | 350 | 445 | |
| C | mm | 97 | 138 | 138 | 172 | 234 | |
| F | mm | 14 | 18 | 24 | 36,6 | 48 | |
| Weight | kg | 8,2 | 13 | 16,2 | 29 | 55 | |
