150-800 LB Check Valve, Bolted Bonnet, Full & Standard Port

Name: 150-800 LB Check Valve, Bolted Bonnet, Full & Standard Port
Brand: www.valves-uk.com
SKU: YV-CKV-07
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: YV-CKV-07

Key Specifications / Features

150-800 LB Check Valve Manufacturer: 150-800 LB Check Valve, 1/4-2 Inch, DN8-ND50, Bolted Bonnet, Full & Standard Port, ASME B16.34, BS 5352, MSS SP25.

ASME B16.34 BS 5352 Full Port 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch Class 150 Class 300 Class 800 Class 600 Bolted Bonnet 1/4 Inch

Design Construction:
ASME B16.34, BS 5352
Testing according to API 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Spiral-wound gasket
Spring on request only

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

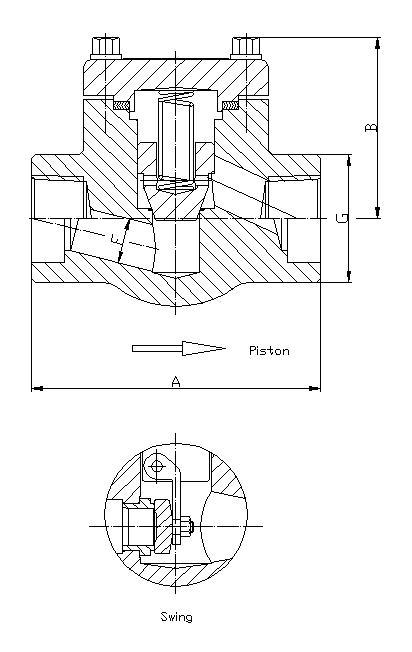

150-800 LB	DN	R.P	mm	8	10	15	20	25	32	40	50	-
		R.P	(in)	1/4	3/8	1/2	3/4	1	11/4	11/2	2	-
		F.P	mm	-	8	10	15	20	25	32	40	50
		F.P	(in)	-	1/4	3/8	1/2	3/4	1	11/4	11/2	2
	F		R.P	7	10	10	13	18	24	29	36.5	-
	F		F.P	-	7	10	13	18	24	29	36.5	46.5
	A		lift	79	79	79	92	111	120	152	172	200
	A		swing	79	79	79	92	111	120	120	140	170
	H		lift	61	61	61	61	78	84	103	118	132
	H		swing	61	61	61	61	78	84	101	120	133
	kg		lift	1.5	1.4	1.2	1.4	2.3	3.9	5.6	8.9	12.5
	kg		swing	1.3	1.2	1.0	1.1	1.9	3.4	4.5	7.3	10.0
