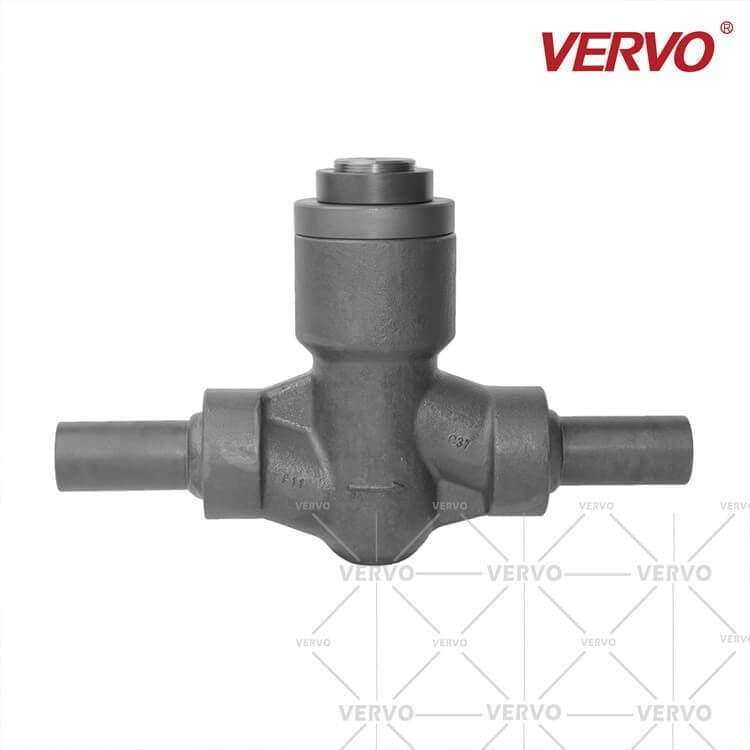

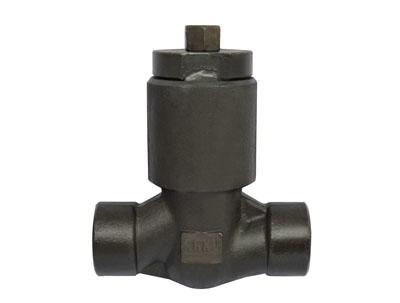

High Pressure Seal Piston Check Valve, API 602, 1 IN, 2500 LB

Name: High Pressure Seal Piston Check Valve, API 602, 1 IN, 2500 LB
SKU: VF-231214-CV-05
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Experience superior fluid control with our API 602 High-Pressure Seal Piston Check Valve. This meticulously crafted valve, designed in our cutting-edge mill in China, boasts top-notch features. With a robust 1-inch build and a high-pressure Class 2500 LB rating, it ensures reliable performance in demanding applications. The NO.5 Trim enhances precision and efficiency in fluid management. Operate with ease using the Hand Wheel Operator for seamless control.

Request a quote

Detail Information

Standard: API 602
Material: ASTM A105N
Trim: NO.5
Size: 1 Inch, DN25
Class Rate: 2500 LB, PN420
Ends: NPT, NPT * SW, SW
Operating: Hand Wheel
Testing: API 598
Face to face: ASME B16.10
Flanges: ASME B16.5
Marking MSS SP25
Integral body flanges

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
