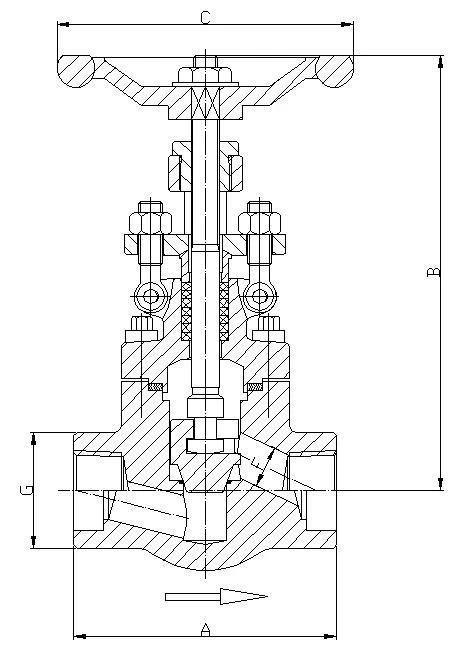

Bolted Bonnet Globe Valve, ASTM A105N, 1/4-2 Inch, 900-1500 LB

Name: Bolted Bonnet Globe Valve, ASTM A105N, 1/4-2 Inch, 900-1500 LB
SKU: VF-231213-GLV-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As your premier Bolted Bonnet Globe Valve provider, we offer top-quality valves designed to meet your specific needs. Manufactured with precision, our valves are available in sizes ranging from 1/4 to 2 inches, suitable for Class 900-1500 LB applications. Crafted from ASTM A105N material, our valves adhere to the highest industry standards, including ASME B16.34 and BS 5352.

Request a quote

Detail Information

Design Construction:
Design: ASME B16.34, BS 5352
Testing according: API 598
Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN6, DN10, DN15, DN20, DN25, DN32, DN40, DN50
Class: 900 LB, 1500 LB, PN 150, PN250
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Spiral-wound gasket
Integal backseat
Loose solid disc
Marking MSS SP25
Outsind Screw and Yoke(OS & Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
