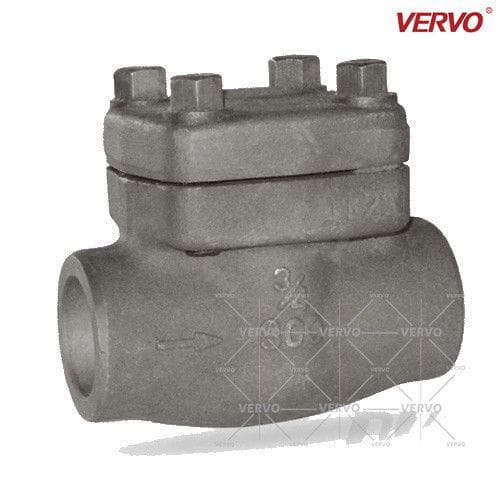

ASTM A105N Piston Check Valve, API 602, 3/4 IN, 1500 LB, RF
Model Number: VF-231214-CV-07
Key Specifications / Features
As a leading Cryogenic Piston Check Valve maker, our NO.5 Trim valve is engineered to excel in demanding environments. Constructed with precision from ASTM A105N, this 3/4-inch valve boasts a robust Class 1500 LB rating, making it ideal for cryogenic applications. The RF End ensures a secure connection, while the Hand Wheel Operation provides convenient control.
Detail Information
Standard: API 602
Material: ASTM A105N
Trim: NO.5
Size: 3/4 Inch, DN20
Class Rate: 1500 LB, PN250
Ends: RF
Operating: Hand Wheel
Testing: API 598
Face to face: ASME B16.10
Flanges: ASME B16.5
More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
