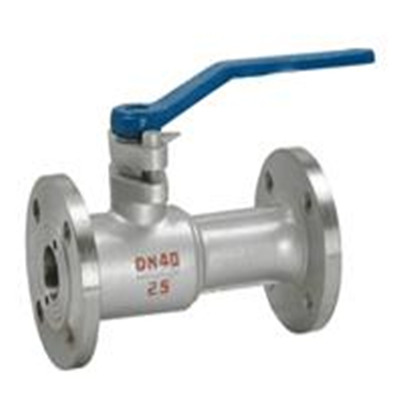

Stainless Steel Ball Valve
Key Specifications / Features
Stainless Steel Ball Valve Supplier in China: Stainless Steel Ball Valve, API 6D, ASTM A351 CF8, ASTM A351 CF8M, Class 150 - 2500 LB, RF Flanged Ends.
Request a quote
Detail Information
ASTM A351 CF8 Ball Valve, ASTM A351 CF8M Ball Valve, Chemical Ball Valve, Metallurgical Ball Valve.
Ball Valve Applicable Standards:
Design & Manufacture according to: API 6D.
Face to Face according to : ASME B16.10.
Flange Dimensions according to : ASME B16.5.
Pressure & Temperature according to: ASME B16.34.
Test & Inspection according to: API 6D, API 598.
Visual Inspection according to: MSS SP-55.
Marking according to: MSS SP-25.
Ball Valve Detail Information:
Ball Valve Material Option (for future reference only):
Ball Valve Applicable Standards:
Design & Manufacture according to: API 6D.
Face to Face according to : ASME B16.10.
Flange Dimensions according to : ASME B16.5.
Pressure & Temperature according to: ASME B16.34.
Test & Inspection according to: API 6D, API 598.
Visual Inspection according to: MSS SP-55.
Marking according to: MSS SP-25.
Ball Valve Detail Information:
| Structure | API 607 fire safe 3pc forged steel ball valve. |
| Pressure | 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB. |
| Power | Gear Operated. |
| Material | ASTM A182 Gr. F304, ASTM A182 Gr. F316. |
| Temperature of Media | -29 ℃ - 425 ℃. |
| Media | Crude Oil, Natural Gas, etc. |
| Port Size | 4 inch Raised Face RF Flange. |
| Application | Crude Oil & Natural Gas, etc. |
| OEM | We offer OEM service. |
Ball Valve Material Option (for future reference only):
| Carbon steel | ASTM A216 Gr. WCB, ASTM A216 WCC, ASTM A216 WCA, etc. |
| Low temperature steel | ASTM A352 Gr. LCB, ASTM A352 LCC, ASTM A352 LC1, etc. |
| Cr-Mo steel | ASTM A217 Gr. WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12, ASTM A217 C12A, etc. |
| Stainless Steel | ASTM A351 Gr. CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CF8C , etc. |
| Alloy steel | ASTM A743 CN7M alloy 20, ASTM A743 CN3M alloy 20 modified, ASTM A351 CT15C, etc. |
| Super duplex | ASTM A995 Gr. 4A , ASTM A890 5A, ASTM A351 CE8MN, ASTM A351 CD6MN, ASTM A351 CD3MN, etc. |
| Aluminum bronze | B148 C95500, C95600, C95800, etc. |
| Monel | M30C, M35-1, CZ100, etc. |
| Inconel | CY40 inconel 600, etc. |
| Hastelloy | CW2m Hastelly C4, N12MV Hastelloy B, CW12MW Hastelloy C276, etc. |
| Incoloy | CU5MCuC Incoloy 825, CW6MC Incoloy 625, etc. |
