Parallel Slide Gate Valve
Key Specifications / Features
Parallel Slide Gate Valve Maker in China: Parallel Slide Gate Valve, 2-48 Inch, DN50-DN1200, Class 150-2500 LB, PN16-PN420, API 600, API 6D, BS 1414.
Request a quote
Detail Information
Sizes: 2 Inch-48 Inch or DN50-DN1200.
Pressure Rating: Class 150-2500 LB or PN16-PN420.
Valve Materials: ASTM A216 WCB, ASTM A352 LCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C12, ASTM A217 C5, ASTM A351 CF8, ASTM A351 CF8M, Duplex Stainless Steels, etc.
Operated by: Handwheel, Gear, Pneumatic, Hydraulic and Electric actuator.
Applicable standards of API Slab Gate Valves:
a) Design & Manufacture: API 600, API 6D, BS 1414.
b) Face to Face: API 6D, ASME B16.10, EN 558.
c) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220.
d) Test: API 598, API 6D, EN 12266.
Slab gate valves are usually used for the oil & gas pipe-lines.

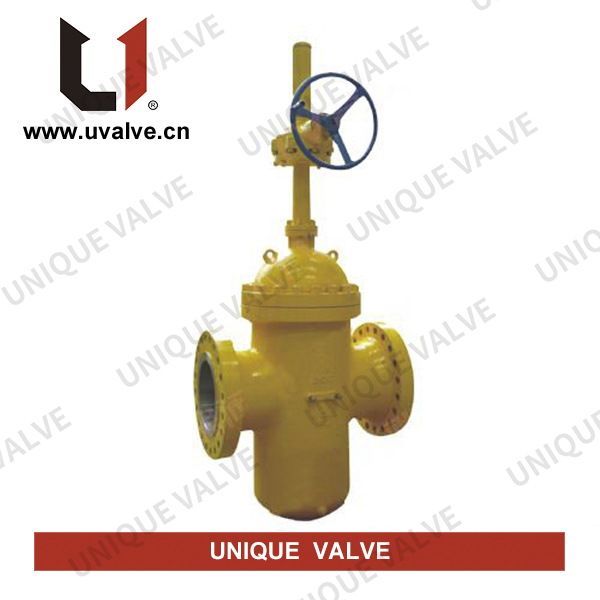

Slab gate valve are manufactured with a full bore, slab gate, rising stem OS & Y and floating seats. Slab gate is a simple solid gate design, featuring metal-to-metal seal between gate and seats, to apply for the most severe service condition, including corrosive and abrasive fluid environments. A floating seat is designed to match the slab gate. A belleville spring and O-ring between each seat and body ensure a tight seal against the slab gate. The floating slab gate uses the natural force of line pressure to obtain a dynamically tight downstream seal in high-pressure differential applications. Low-pressure sealing is accomplished with an o-ring that energizes the seat and minimizes corrosion and debris build up. Common trims are available.
Double block and bleed capability and automatic relief of excess body pressure are standard feature of this seat design.
Slab Gate valve design minimizes and eases the maintenance allowing for the service operations to be done without the removal of the valve from the line.
Features of API Slab Gate Valves:
Floating slab gate.
Spring, pressure loaded seat ring with relief valve.
Bubble tight shut off at high and low pressure.
Bi-directional operations.
Double Block and Bleed performance available.
Seat faces protected from erosion by flow.
Position indicator.
Top entry assembly for on-line maintenance.
Various actuation (Electric, Pneumatic and Hydraulic actuators).
Pressure Rating: Class 150-2500 LB or PN16-PN420.
Valve Materials: ASTM A216 WCB, ASTM A352 LCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C12, ASTM A217 C5, ASTM A351 CF8, ASTM A351 CF8M, Duplex Stainless Steels, etc.
Operated by: Handwheel, Gear, Pneumatic, Hydraulic and Electric actuator.
Applicable standards of API Slab Gate Valves:
a) Design & Manufacture: API 600, API 6D, BS 1414.
b) Face to Face: API 6D, ASME B16.10, EN 558.
c) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220.
d) Test: API 598, API 6D, EN 12266.
Slab gate valves are usually used for the oil & gas pipe-lines.
Slab gate valve are manufactured with a full bore, slab gate, rising stem OS & Y and floating seats. Slab gate is a simple solid gate design, featuring metal-to-metal seal between gate and seats, to apply for the most severe service condition, including corrosive and abrasive fluid environments. A floating seat is designed to match the slab gate. A belleville spring and O-ring between each seat and body ensure a tight seal against the slab gate. The floating slab gate uses the natural force of line pressure to obtain a dynamically tight downstream seal in high-pressure differential applications. Low-pressure sealing is accomplished with an o-ring that energizes the seat and minimizes corrosion and debris build up. Common trims are available.
Double block and bleed capability and automatic relief of excess body pressure are standard feature of this seat design.
Slab Gate valve design minimizes and eases the maintenance allowing for the service operations to be done without the removal of the valve from the line.
Features of API Slab Gate Valves:
Floating slab gate.
Spring, pressure loaded seat ring with relief valve.
Bubble tight shut off at high and low pressure.
Bi-directional operations.
Double Block and Bleed performance available.
Seat faces protected from erosion by flow.
Position indicator.
Top entry assembly for on-line maintenance.
Various actuation (Electric, Pneumatic and Hydraulic actuators).
