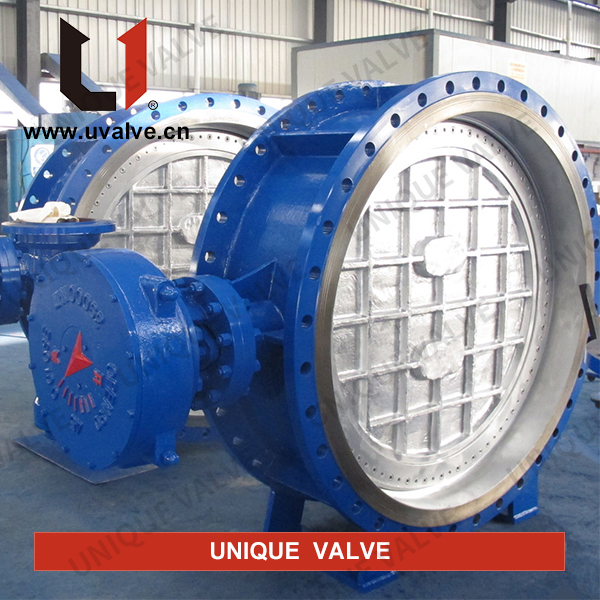

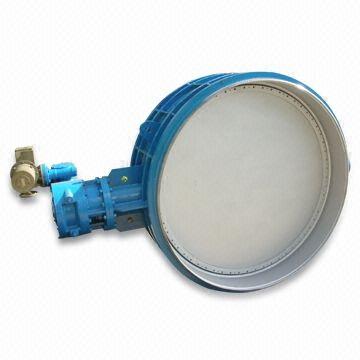

Carbon Steel Butterfly Valve
Key Specifications / Features
Carbon Steel Butterfly valve Manufacturer in China: Carbon Steel Butterfly Valve, 1/2-24 Inch, DN15-DN3500, Class 150-900 LB, API 609, ASME B16.34.
Request a quote
Detail Information
Carbon Steel Butterfly Valve are used in such fields as metallurgy, light industry, electric power, petrochemistry, Coal gas channel etc.
Size: 1/2 Inch - 24 Inch, DN15-DN3500.
Pressure Range: 150 - 900 LB, PN1.0-PN6.4.
Material: Body And Bonnet Available In Carbon Steel, In Alloy And Stainless Steel And Other Materials Available To Order.
End Connection: Flanged, Screwed, Socket Weld Or Butt Weld Offered.
Design and Manufacture: API 609, MSS SP-67, MSS SP-68.
Inspection and Test: API 598.
End flange dimension: ASME B16.5 (NPS≤ 24), ASME B16.47 B.
BW end dimension: ASME B16.25.
Face to face and end to end: API 609.
Pressure-temperature ratings: ASME B16.34.
Trait and purpose:
Hard Seal Butterfly Valve triple offset series are Unique VALVE leading products,
Which are used in such fields as metallurgy, light industry, electric power, petrochemistry, Coal gas channel etc.
The Seal principle of hard Seal Butterfly Valve triple offset:
The Triple Offset Butterfly Valve Provides a bi-directional bubble tight shut-off.
This geometry ensures that the disc seal contacts the body seat only at the final shut-off.
Position without rubbing or galling, providing a torque generated resilient seal with sufficient "wedging" to ensure a uniform seal contact.
Size: 1/2 Inch - 24 Inch, DN15-DN3500.
Pressure Range: 150 - 900 LB, PN1.0-PN6.4.
Material: Body And Bonnet Available In Carbon Steel, In Alloy And Stainless Steel And Other Materials Available To Order.
End Connection: Flanged, Screwed, Socket Weld Or Butt Weld Offered.
Design and Manufacture: API 609, MSS SP-67, MSS SP-68.
Inspection and Test: API 598.
End flange dimension: ASME B16.5 (NPS≤ 24), ASME B16.47 B.
BW end dimension: ASME B16.25.
Face to face and end to end: API 609.
Pressure-temperature ratings: ASME B16.34.
Trait and purpose:
Hard Seal Butterfly Valve triple offset series are Unique VALVE leading products,
Which are used in such fields as metallurgy, light industry, electric power, petrochemistry, Coal gas channel etc.
The Seal principle of hard Seal Butterfly Valve triple offset:
The Triple Offset Butterfly Valve Provides a bi-directional bubble tight shut-off.
This geometry ensures that the disc seal contacts the body seat only at the final shut-off.
Position without rubbing or galling, providing a torque generated resilient seal with sufficient "wedging" to ensure a uniform seal contact.

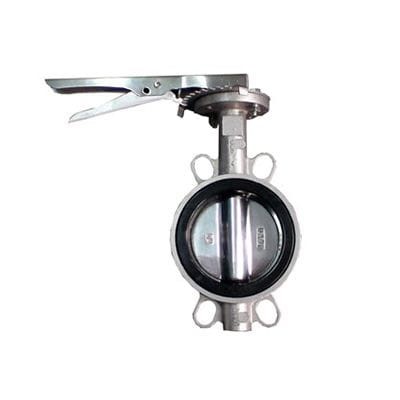

Similar Products
