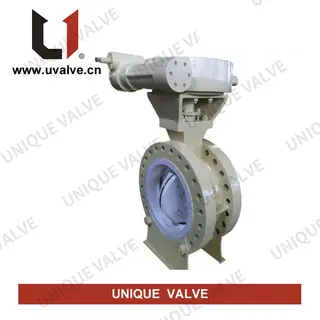

Bi-Directional Butterfly Valve
Key Specifications / Features
Bi-Directional Butterfly Valve Supplier in China: Bi-Directional Butterfly Valve, API 609, Class 150 - 2500 LB, 2 - 24 Inch, Test API 598, ISO 5208.
Request a quote
Detail Information
Technical Specification:
Design Standard: API 609.
Body material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC1, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CN7M, ASTM A352 LC1, ASTM A352 LCB, ASTM A352 LCC, ASTM A352 LC3 (Cast Steel, Alloy Steel, Stainless Steel, Special Steel).
Nominal Pressure: Class 150-2500 LB.
Nominal Diameter: 2 Inch - 24 Inch.
End Connection: RF, FF, M, F, TG, RG.
Face To Face: API 609.
Working Temperature: -29℃ - 200℃.
Test And Inspection: API 598, ISO 5208.
End flange dimension: ASME B16.5, ASME B16.47 (API 605, MSS SP44).
Butt weld end dimension: ASME B16.25 (BW).
NACE: NACE 0175.
Design Standard: API 609.
Body material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC1, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A351 CN7M, ASTM A352 LC1, ASTM A352 LCB, ASTM A352 LCC, ASTM A352 LC3 (Cast Steel, Alloy Steel, Stainless Steel, Special Steel).
Nominal Pressure: Class 150-2500 LB.
Nominal Diameter: 2 Inch - 24 Inch.
End Connection: RF, FF, M, F, TG, RG.
Face To Face: API 609.
Working Temperature: -29℃ - 200℃.
Test And Inspection: API 598, ISO 5208.
End flange dimension: ASME B16.5, ASME B16.47 (API 605, MSS SP44).
Butt weld end dimension: ASME B16.25 (BW).
NACE: NACE 0175.
