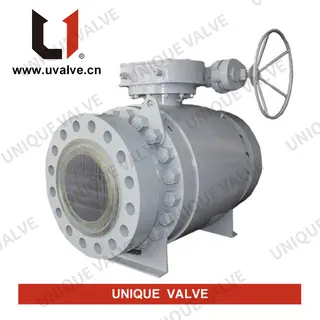

API 6D Trunnion Mounted Ball Valve
Key Specifications / Features
API 6D Trunnion Mounted Ball Valve Manufacturer in China: Trunnion Mounted Ball Valve, 2 - 40 Inch, Class 150 - 2500 LB, API 6D, API 608, ASME B16.34.
Detail Information
API 6D BALL VALVE, API 6D Trunnion Ball Valve, Flange Ball Valve, CLASS 150 Ball Valve, CLASS 300 Ball Valve, CLASS 600 Ball Valve, CLASS 900 Ball Valve, Class 2500 Ball Valve, Class 1500 Ball Valve.
Application standards:
Design as per: API 6D, API 608, ASME B16.34.
Fire-safety: API 607.
Face to face as per: ASME B16.10.
Flange as per: ANSI B16.5.
Test as per API 598.
Stopper device provided.
Locking device (if needed).
Size: 2 Inch - 40 Inch.
Max pressure: Class 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB.
Temperature Range: -20 - 450 Degc.
Suitable medium: Water, Oil, Gas, and Some corrosive liquid.
Main Materials:
1)Material: ASTM A105, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF3, ASTM A351 CF8M, ASTM A351 CF3M, Duplex Steel, ASTM A995 5A, ASTM A995 4A, Aluminium Bronze.
2)Ball and Stem: ASTM A105, SS 304, SS 316, SS 304L, SS 316L, SS 410, SS 416. Etc.
3)Valve Seat: PTFE, RPTFE, PPL, etc.
Application standards:
Design as per: API 6D, API 608, ASME B16.34.
Fire-safety: API 607.
Face to face as per: ASME B16.10.
Flange as per: ANSI B16.5.
Test as per API 598.
Stopper device provided.
Locking device (if needed).
Size: 2 Inch - 40 Inch.
Max pressure: Class 150 LB, 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB.
Temperature Range: -20 - 450 Degc.
Suitable medium: Water, Oil, Gas, and Some corrosive liquid.
Main Materials:
1)Material: ASTM A105, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF3, ASTM A351 CF8M, ASTM A351 CF3M, Duplex Steel, ASTM A995 5A, ASTM A995 4A, Aluminium Bronze.
2)Ball and Stem: ASTM A105, SS 304, SS 316, SS 304L, SS 316L, SS 410, SS 416. Etc.
3)Valve Seat: PTFE, RPTFE, PPL, etc.
