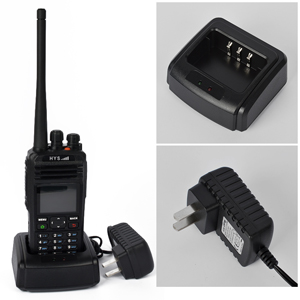

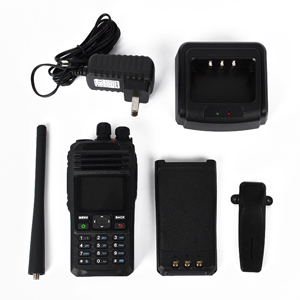

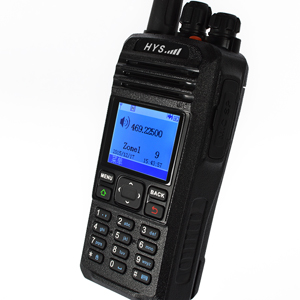

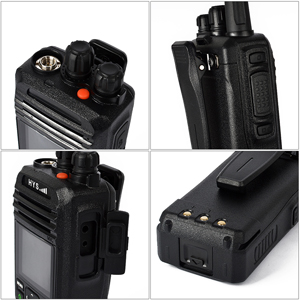

Portable GPS DPMR Two Way Radio TC-819DP
Model Number: TC-819DP
Key Specifications / Features
China GPS DPMR Two Way Radio Manufacturer Truest provides Portable GPS DPMR Two Way Radio, large screen, multi channels, bilingual menu display, SMS Function.
Detail Information
Main Features:
1. Digital/Analog Modes.
2. 6.25KHz Channel Spacing.
3. Chinese/English Menu Display.
4. Multi-call Modes.
5. Remote Kill.
6. SMS Function.
7. Emergency Alarm Function.
8. Call Recording and Playback (Optional).
9. GPS RX Positioning (Optional).
10. Scan Function.
11. Tone Tail Elimination.
12. High/Low Power Selective.
13. Call Digital Encryption Function.
1. Digital/Analog Modes.
2. 6.25KHz Channel Spacing.
3. Chinese/English Menu Display.
4. Multi-call Modes.
5. Remote Kill.
6. SMS Function.
7. Emergency Alarm Function.
8. Call Recording and Playback (Optional).
9. GPS RX Positioning (Optional).
10. Scan Function.
11. Tone Tail Elimination.
12. High/Low Power Selective.
13. Call Digital Encryption Function.
| General Specification | ||
| Frequency Range | 136-174 MHz; 400-470 MHz | 446MHz |
| Channel Spacing | 12.5KHz (Digital)/ 25KHz (Analog) | 6.25KHz (Digital)/12.5KHz(Analog) |
| Channel Capacity | 256 | |
| Operating Voltage | DC7.4V±15% | |
| Operating Temperature | -20℃~ +60℃ | |
| Battery Pack | 1800mAh | |
| RF Power | VHF:5W/1W; UHF:4W/1W | |
| Frequency Modulation | 4FSK (Digital); 11KΦF3E/16KΦF3E (Analog) | |
| 4FSK Modulation Accuracy | ≤5% | |
| Adjacent Channel Power | ≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥60dB @ 6.25KHz; | |
| Adjacent Channel Selectivity | ≥70dB @ 25KHz; ≥60dB @ 12.5KHz; ≥50dB @ 6.25KHz; | |
| Digital Sensitivity | -110dBm (BER ≤1%) | |
| Dimensions (W×H×D) | 60mm × 135mm × 36mm | |
| Weight | 262g (With Belt Clip and Antenna) | |
