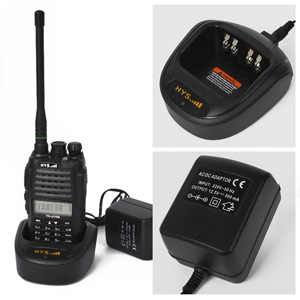

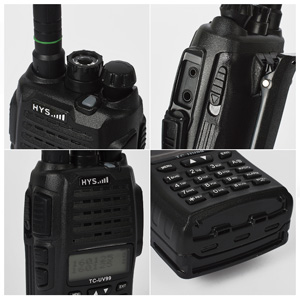

Portable Dual Band Two Way Radio TC-VU99
Key Specifications / Features
China Dual Band Two Way Radio Manufacturer Truest provides Portable Portable Dual Band Two Way Radio, multi-display mode, DTMF Signaling System, VOX function.
Request a quote
Detail Information
Technical Specifications:
| 1. Frequency Range: 136-174MHz, 350-390MHz, 400-470MHz, 480-520MHz | 20. Busy Channel lockout |
| 21. Low Voltage Alarm with Sound and Light | |
| 2. Working Mode: U&V, U&U, V&V, V&U | 22. Auto Backlight |
| 3. Dual frequency display (Caller ID) | 23. Auto/Manual Keyboard Lock |
| 4. Dual frequency standby in any band | 24. Three Display Color selectable both in transmitting,receiving and standby |
| 5. Receiving and transmitting inter-band | 25. Frequency, Channel order and Channel name multi-display mode |
| 6. DTMF Signaling System | 26. Calling Ring Function |
| 7. Digital FM Radio | 27. DTMF |
| 8. 50 Groups CTCSS and 105 Groups DCS | 28. PTT-ID Function |
| 9. ANI Code Display | 29. Mute mode (CTCSS/DCS, CTCSS/DCS and Optional Signal, CTCSS/DCS plus Optional Signal) |
| 10. All calls, group calls and selective calls | |
| 11.Alarm (Distant Urgency Alarm and Alarm at local) | 30. Offset Frequency (can be set between 0 and 69.9875 MHz in Frequency Mode) |
| 12. Non-standard CTCSS (Can be edited arbitrary between 60Hz and 259.9 Hz) | 31. Operating MENU directly through Keypad |
| 13. TOT | 32. Frequency, Channel and MENU Fast Search Function |
| 14. High/Low Power shift | 33. Channel Parameter can be saved in the Frequency Mode |
| 15. CTCSS or DCS can be set respectively | 34. 128 Channels |
| 16. Channel Step (5K, 6.25K, 10K, 12.5K, 25K) | 35. Reverse Frequency Function |
| 17. VOX function | 36. U/V Receiving and Transmitting Inter-Band can be Connected with Repeater |
| 18. Battery Save Function | 37. Wired Cloning Function |
| 19. Wide and Narrow band Selectable (N:12.5KHz/W:25KHz) | 38. PC Programmable |
| General Specifications | |||
| Frequency Range | FM:87-108MHZ (Receiving) VHF:136-174.995MHZ (Receiving & Transmitting) UHF0:350-390.995MHZ (Receiving) UHF1:400-469.995MHZ (Receiving & Transmitting) UHF2:480-520.955MHZ (Receiving) |
Working Mode | Same frequency simplex or Double frequency simplex |
| Memory Channels | 128 | Antenna Impedance | 50Ω |
| Voltage | 7.5V | Frequency Stability | ±2.5ppm |
| Operating Temperature | -30℃—+60℃ | Net Weight | About 246g |
| Battery capacity | 1600mAh (Li-ion) | Dimensions | 58X105X38MM (without antenna) |
| Transmitter (Measurements made per TIA/EIA-603) | |||
| RF Output Power | High:4W ,Low:1W | Audio Modulation Characteristic | (300-3000Hz), +1dB— -3dB |
| Modulation Mode | 16KφF3E/11KφF3E | Adjacent Channel Power | ≥65dB |
| Spurious Radiation | <7μW | Modulation Distortion | ≤5% |
| Max Offset frequency | Channel space 25KHz±5KHz/12.5KHz±2.5KHz | Channel Space | 25KHz |
| Receiver (Measurements made per TIA/EIA-603) | |||
| Sensitivity | (12dBSINAD) 0.18μV | Co-channel Rejection | ≥-0.8dB |
| Noise Quieting Sensitivity | ≤0.8μV | Limited radio features | ≤3 |
| Squelch Sensitivity | ≤0.2μV | Adjacent Channel Selectivity | ≥55dB |
| Audio Output Power | 500mW | Inter modulation characteristics | ≥65dB |
| Audio Distortion | ≤5% | Blocking characteristics | ≥84dB |
| Audio Response | (300-3000Hz)+1dB—－3dB | Spurious Radiation | 9KHz-1GHz≤-57dBm |
| Channel Space | 25KHz≥70dB/12.5KHz≥60dB | ||
