Circular homogenizing system with cantilever stacker and bridge-type scraper reclaimer
General Information
Circular homogenizing stacker and bridge-type scraper reclaimer is a kind of pre-blending equipment, which is widely used in stacking and reclaiming bulk materials like limestone or coal. It is mainly used in building material industry, coal industry, metallurgy industry, power plants, port terminals and other industries for homogenization, storage and transfer of bulk materials, which usually operates in indoor or outdoor stockyards. The PLC program controls the full movement of stacker reclaimer. The chevron stacking method could be achieved by programmed reciprocation of luffing and speed-variable stacking of the machine. Meanwhile, the bridge type scraper reclaims the pre-homogenizing material from the front of the chevron stacked material pile into the scraper chain conveyor equipped in the bottom of the bridge type scraper reclaimer and conveying the material out of the storage yard.
Basic Structure
Circular homogenizing stacker and bridge-type scraper reclaimer mainly consist of cantilever stack system, bridge scraper reclaim system, rake system, center column mechanism, turning mechanism, lubrication system, control room, etc.
| Main Technical Parameters | |
| Conveying Material | limestone, coal, auxiliary material |
| Capacity | 1.45t/m3, 0.85t/m3, 1.2t/m3 |
| Stacking Ability | 50t/h，100t/h，150t/h，200t/h，250t/h，300t/h，400t/h，500t/h，750t/h，1000t/h，1200t/h，1500t/h，1800t/h，2000t/h |
| Circular Storage Yard Diameter | 50m,60m，80m，90m，100m，110m，120m，150m |
| Stack Turning Speed | 0.01r/min |
| Luffing Speed | 0.3m/min~0.6m/min |
| Material Taking Speed | 0.004~0.04m/min |
| Walking Speed | 10.5m/min |
| Scarper Speed | 0.5m/s |
| Rake Speed | 10m/min |

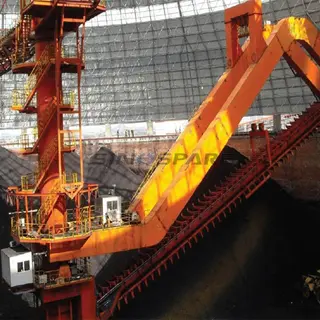

Circular homogenizing system with cantilever stacker and side cantilever stacker
General Information
Circular homogenizing system with cantilever stacker and side cantilever stacker is a newly designed indoor storage equipment with highly environmentally friendly and less land occupation advantages. This kind of homogenizing system is set in closed storage yard to prevent the raw material being washed away by rain and fling off by flowing air during stacking and reclaiming which is also meet the strict requirement of environment protection. Material barriers installed around the storage yard settle to achieve heavy storage in small storage yard.
Circular homogenizing system with cantilever stacker and side cantilever stacker adopts cone type stack method while side cantilever scraper reclaiming materials and the machine is presently wide using in low homogenize requirement raw material stockyard. We have counterweight type and Portal type base on different type of brace.
Basic Structure
Circular homogenizing system with cantilever stacker and side cantilever stacker mainly consists of cantilever stack system, side-type scraper reclaim system, center column mechanism, rotary mechanism, lubrication system, control room, etc.
| Main Technical Parameters | |
| Conveying Material | limestone, coal, auxiliary material |
| Capacity | 1.45t/m3,0.85t/m3,1.2t/m3 |
| Stacking Ability | 50t/h,100t/h,150t/h,200t/h,250t/h,300t/h,400t/h,500t/h,750t/h,1000t/h,1200t/h,1500t/h,1800t/h,2000t/h |
| Circular Storage Yard Diameter | 50m,60m,80m,90m,100m,110m,120m,150m |
| Stack Turning Speed | 0.01r/min |
| Luffing Speed | 0.3m/min~0.6m/min |
| Material Taking Speed | 0.2~2m/min |
| Walking Speed | 10m/min |
| Reclaim Turning Speed | 0.01r/min |
| Scarper Speed | 0.5m/s |
Technical Characteristics of Circular Homogenizing System with Stacker and Reclaimer
1.Perfect homogenization
In the longitudinal material blending yard, different stacking processes can be adopted according to different working conditions. Continuous synthetic stacking methods can be adopted to ensure the homogenization effect in the circular material blending yard.
2. Reliability
2.1 We guarantee the advanced and reasonable technology and stable equipment with the experience and development of making stackers and reclaimers as well as absorbing the advanced technology from international.
2.2 Advanced production equipment and manufacturing technique, such as steel pretreatment line which improves the product's quality and anti-corrosion capability, large milling and boring machine improves quality of large parts. Large-scale structural components processed the pre-assembling procedure driving parts we will be tested before delivery. Rotating parts are all processing mold integrated manufacturing.
2.3 New materials applicating, such as wear-resistance material, composite material.
2.4 First class quality fittings.
2.5 Damage reduced by soft start and frequency converting control.
2.6 Protection programs are presetting
2.7 Advanced testing methods and QC system in our plant.
3. Advancement
3.1 Fully automatic operation.
3.2 Various stacking and reclaiming methods presetting to satisfy different work condition of blending yard.
3.3 Advanced frequency conversion technical.
