YK43X Piston gas pressure reducing valve, WCB, SS304, SS316
Key Specifications / Features
Detail Information
-
YK43X Piston gas pressure reducing valve Feature
YK43X piston gas pressure reducing valve belongs to pilot piston type pressure reducing valve.YK43X pilot gas pressure reducing valve is composed of main valve and pilot valve.Main valve consists of seat, disc, piston, spring and other components.The guide valve mainly consists of seat, disc, diaphragm, spring, adjusting spring and other parts.The outlet pressure is set by adjusting the spring ,which is transfer the outlet pressure changes according to the diaphragm sensor, and the piston is driven through the opening and closing of the guide valve to adjust the flow area of the main valve throttling position, so as to realize the pressure reducing and pressure stabilizing function.
.YK43X piston gas pressure reducing valve is mainly used for gas pipeline, such as air, nitrogen, oxygen, hydrogen, liquefied gas, natural gas and other gases. -

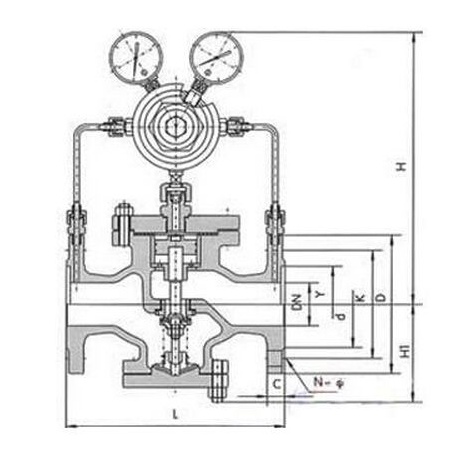

YK43X Piston gas pressure reducing valve structure
-
YK43X Piston gas pressure reducing valve technical parameter
Note:Shell test does not include diaphragm and roof.Nominal pressure（MPa） 1.6 2.5 4.0 6.4 10.0 16.0 Shell test pressure（MPa） 2.4 3.75 6.0 9.6 15.0 24 Seal test pressure（MPa） 1.6 2.5 4.0 6.4 10.0 16.0 Max. Inlet pressure（MPa） 1.6 2.5 4.0 6.4 10.0 16.0 Outlet pressure range（MPa） 0.1-1.0 0.1-1.6 0.1-2.5 0.5-3.5 0.5-35 0.5-45 Pressure characteristic deviation（MPa）△P2P GB12246-1989 Flow characteristic deviation（MPa）△P2G GB12246-1989 Max. Pressure difference（MPa） 0.15 0.15 0.2 0.4 0.8 1.0 Leakage Level GB12245-1989 (Soft seat is zero leakage) -
Y43H pilot steam pressure reducing valve Flow coefficient
DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 500 Cv 1 2.5 4 6.5 9 16 25 36 64 100 140 250 400 570 780 1020 1500 -
YK43X Piston gas pressure reducing valve main material
Part Name Material Body/Bonnet/End bonnet WCB/CF8/CF8M Seat 2Cr13/304/316 Cylinder sleeve 2Cr13 Piston 2Cr13/Copper Piston ring Cast iron/stainless steel Guide valve seat / stem 2Cr13 Diaphragm 1Cr18Ni9Ti Main valve spring 1Cr18Ni9Ti Guide valve sprig 50CrVA Regulating spring 60Si12Mn -
YK43X Piston gas pressure reducing valve outline dimension （PN10-40)
DN Outline dimension (PN1.6-4.0Mpa) Unit(mm) L H Hl 1.6/2.5MPa 4.0MPa 15 160 180 290 90 20 160 180 300 98 25 180 200 300 110 32 200 220 300 110 40 220 240 320 125 50 250 270 320 125 65 280 300 325 130 80 310 330 365 160 100 350 380 365 170 125 400 450 475 200 150 450 500 475 210 200 500 550 515 240 250 650 560 290 300 800 705 335 350 850 745 375 400 900 780 405 450 900 730 455 500 950 835 465 -
YK43X Piston gas pressure reducing valve outline dimension （PN64-160)
DN Outline dimension (PN6.4-16Mpa) Unit(mm) L H Hl 6.4MPa 10.0/16.0MPa 15 180 180 300 100 20 180 200 310 105 25 200 220 31 120 32 220 230 310 120 40 240 240 335 135 50 270 300 335 135 65 300 340 340 140 80 330 360 380 170 100 380 380 185 125 450 490 215 150 500 490 225 200 550 535 260 250 650 580 310 300 800 725 355 350 850 765 395 400 900 800 435 500 950 855 495
