Non-Lubricated Sleeved Plug Valve, Class 150, 300, 600, 900 LB

Non-Lubricated Sleeved Plug Valve, Class 150, 300, 600, 900 LB

Model Number: SJ-PV-04

Key Specifications / Features

China Non-Lubricated Sleeved Plug Valve Manufacturer Shinjo Supplies Non-Lubricated Sleeved Plug Valve, Class 150, 300, 600, 900 LB.
API 599 Class 150 Class 300 Class 600 Class 900 CF8 CF8M
Share:
Contact Supplier

Detail Information

Plug valves are valves with round or conically tapered "plugs" which may be rotated within the valve body to manage flow with the valve. The plugs in plug valves have a number of hollow passageways going sideways with the plug, to ensure that fluid can flow with the plug once the valve is open. Plug valves are pretty straight forward and frequently economical.


Overview

Non-Lubricated, Sleeved Plug Valve is relevant towards the cutting and connection of pipeline's medium that turned on in a variety of industries for example oil, chemical industry, pharmacy, chemical fertilizer, power industry etc.

Sleeved Plug Valve under nominal pressure of sophistication 150-900 Lbs, and works in the temperature of -29 ~ 180C.

a. The merchandise has reasonable structure, reliable sealing, excellent performance and delightful appearance.

b. Sleeved Plug Valve's sealing is recognized through the sealing face round the sleeve. It's unique all over metal edge for defense and fixing from the sleeve.

c. There's no cavity within the Plug valves for that accumulation of medium.

d. Metal edge offers the purpose of self-cleaning once the plug is rotated. It's relevant towards the operation condition that's glutinous sand likely to smudge.

e. Sleeved Plug Valve's double-direction flow makes installation and employ easier.

f. The types of materials from the parts and dimensions of flanges could be configured reasonably based on the actual operation condition the client needed, in order to satisfy the various needs of engineering.

Specifications
Driving Handwheel, Worm Gear, Pneumatic, Electric Actuator
Design Standard API 599, API 6D
Face to Face ASME B16.10
Flange End ASME B16.5
Test & Inspection API 598, API 6D

Performances
PN (Lbs) Shell test (MPa) Sealing test (MPa) Suitable temperature Suitable medium
150 3.0 2.2 ≤ 180°C Water oil &gas
300 7.5 5.5
600 15.0 11.0
900 22.5 16.5

Materials
Non-Lubricated Sleeved Plug Valve

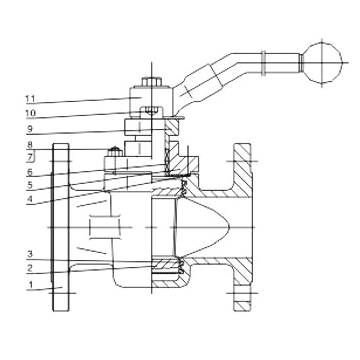

NO Part name Material
1 Body ASTM A216-WCB ASTM A351-CF8, CF8M, CF3, CF3M
2 Sleeve PTFE
3 Plug ASTM A217-WC1, WC6, WC9, C5 ASTM A351-CF8, CF8M, CF3, CF3M
4 Gasket PTFE
5 Adjusting gasket ASTM A182-F304, F316, F321, F304L, F316, ASTM A182-Gr.F6a ASTM A182-F22
6 Cover ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M
7 Bolt ASTM A194-2H, A194-8, A194-8M
8 Nut ASTM A194-2H, A194-8, A194-8M
9 Adjusting Gland ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M
10 Nut ASTM A193-B7,A193-B8,A193-B8M
11 Wrench ASTM A216-WCB

Dimensions and Weights

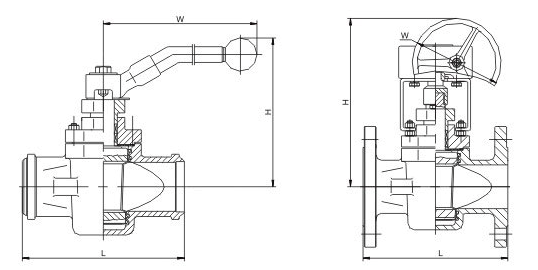

Non-Lubricated Sleeved Plug Valve Dimensions
Pressure 150 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 8.5 9.5 10.0 12 14 22 22 26 40 60 70 130 219 381 570

Pressure 300 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 8.5 9.5 10.0 12 14 22 22 26 40 60 70 130 219 381 570

Pressure 600 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF, BW 165 190 216 229 214 292 330 356 432 508 559 660 787 838 889
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 11 13 17 20 23 27 31 36 72 98 141 245 330 515 710

Pressure 900 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF, BW 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 13 16 21 24 28 32 40 47 91 117 165 285 420 610 860
Note: 4" or above with gear

Pneumatic Actuated Sleeved Plug Valve

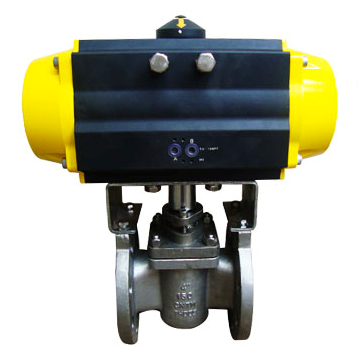

Fig.1: Pneumatic Actuated Sleeved Plug Valve
Low Temperature Sleeved Plug Valve

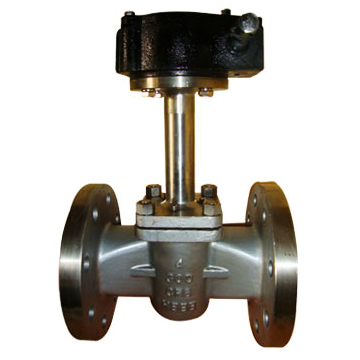

Fig.1: Low Temperature Sleeved Plug Valve​
PTFE Lined Sleeved Plug Valve

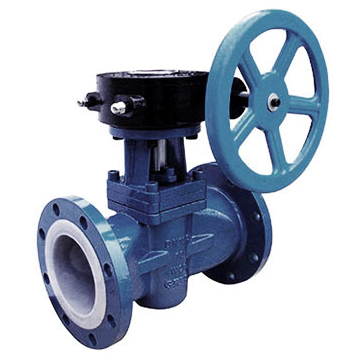

Fig.1: PTFE Lined Sleeved Plug Valve​​
