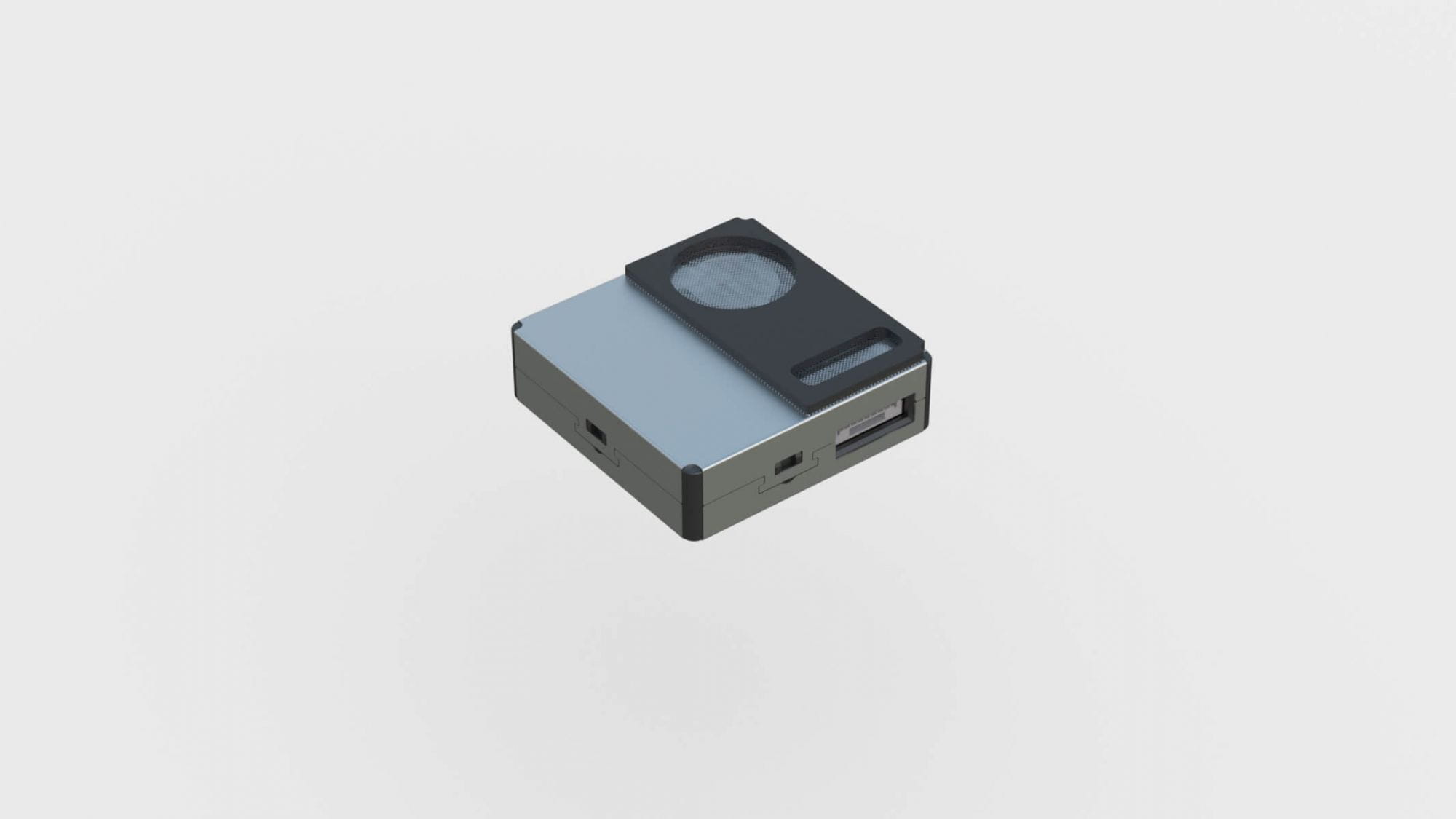

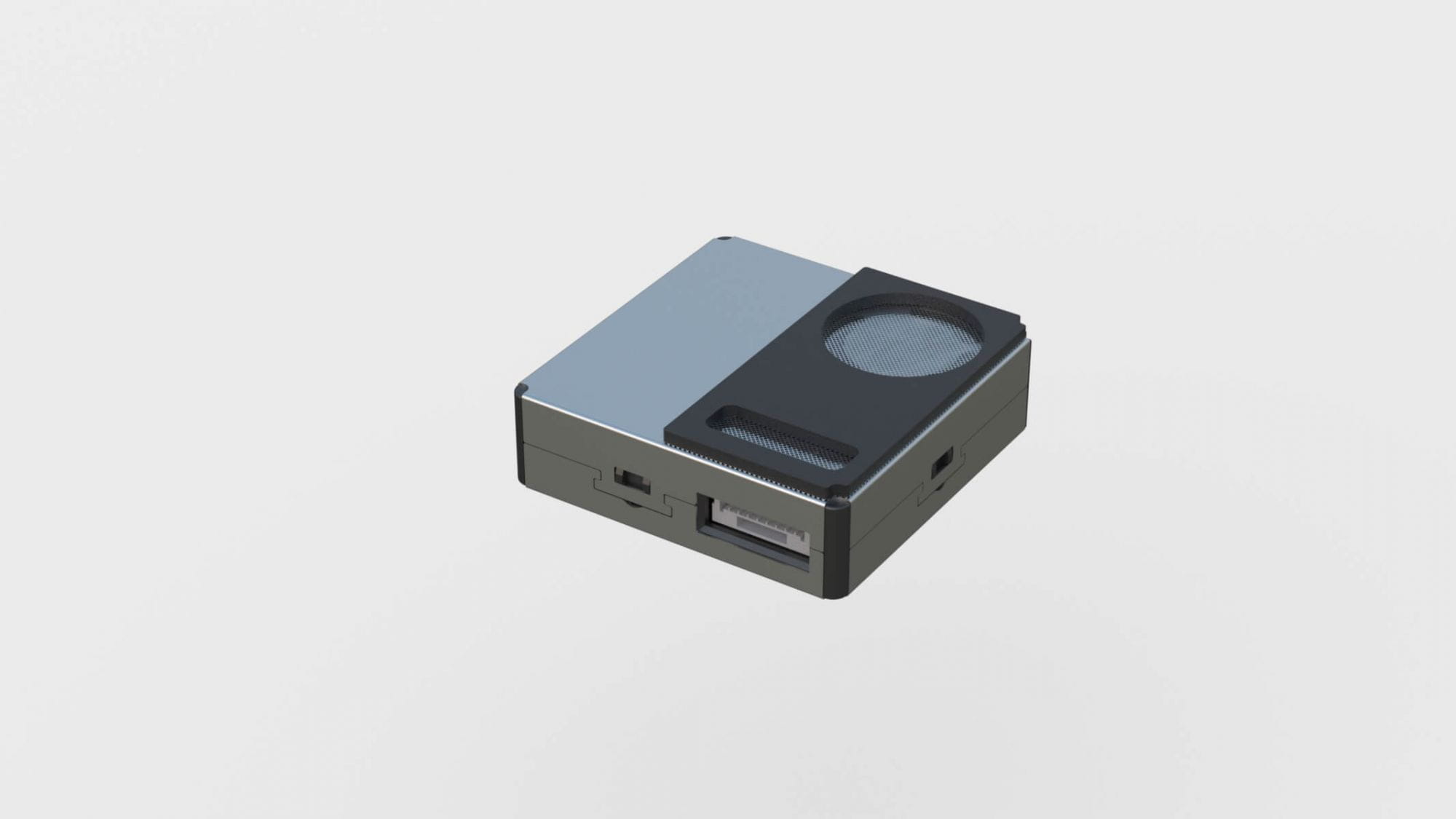

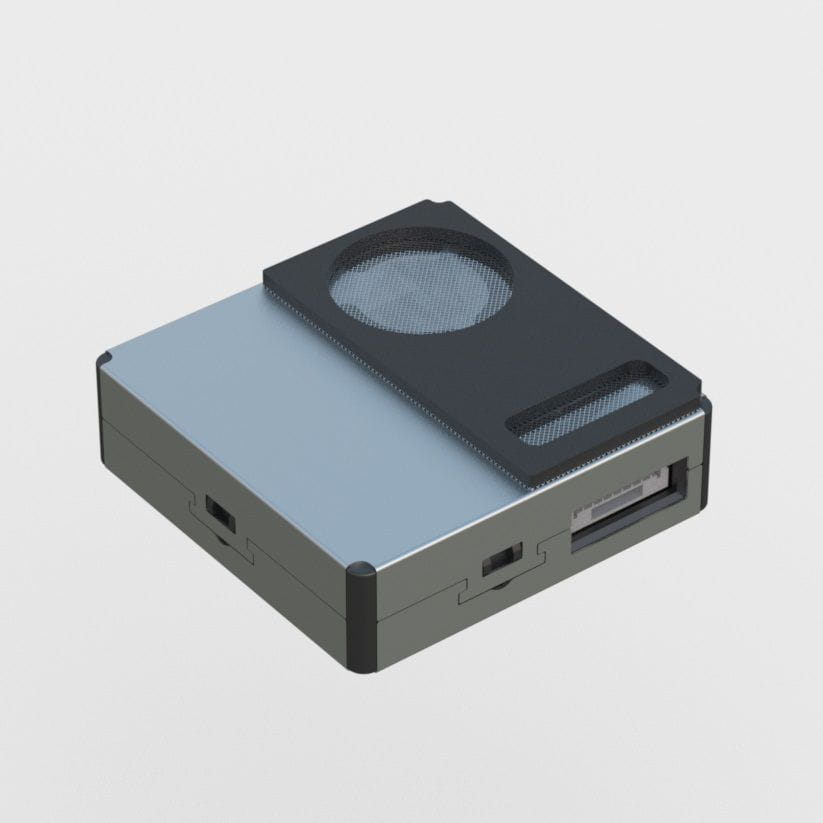

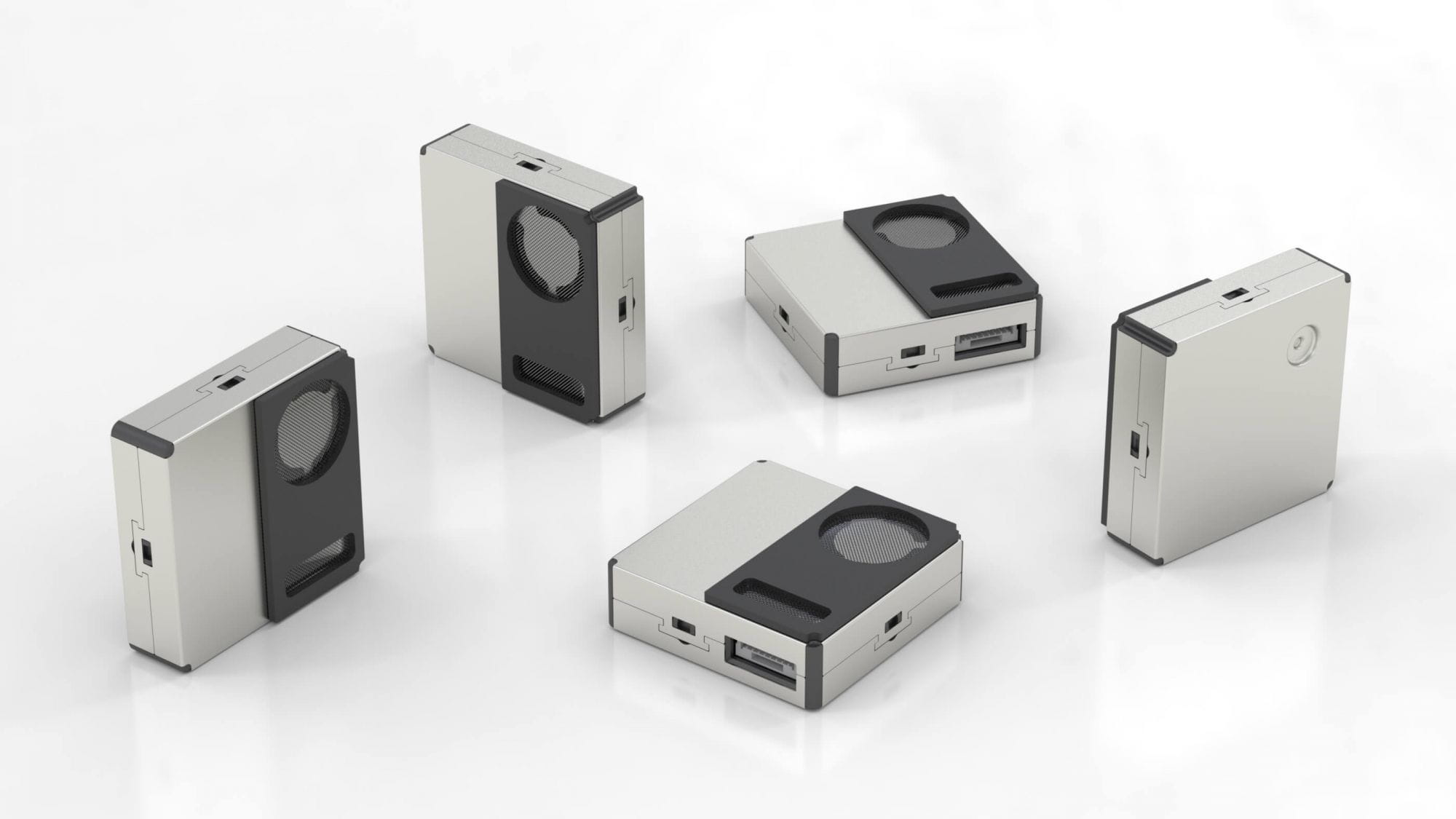

PM1.0, PM2.5, PM10, BSP Laser Dust Sensor
Key Specifications / Features
Laser Dust Sensor Supplier: PM1.0, PM2.5, PM10, BSP Laser Dust Detectors, UART TTL Data Interface, 0-90% RH Working & Storage Humidity, for Air Purifier.
Request a quote
Detail Information
Features
·Accurate and reliable data output
·Small size, convenient for installation
·Available for PM1.0, PM2.5, PM10 and BSP detection
·Anti-interference capability
·Standard TTL serial port data output
·Specific laser anti-attenuation & constant brightness function
·Low power consumption
·High precision detection for large particulate matter
·Multi-channel particle size identification
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Technical Measurement Indexes
(*: BSP is the mass concentration value of large particles over 2.5 microns.)
Specification Parameters
Data Interface: UART TTL, 9600 bps
Power Supply: DC 5±0.5V, Ripple＜50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 27g
Size: 45mm x 45mm x 14.5mm
MTTF: ≥30000H
Product Classification
·Accurate and reliable data output
·Small size, convenient for installation
·Available for PM1.0, PM2.5, PM10 and BSP detection
·Anti-interference capability
·Standard TTL serial port data output
·Specific laser anti-attenuation & constant brightness function
·Low power consumption
·High precision detection for large particulate matter
·Multi-channel particle size identification
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Car Air Purifier
·Air Quality Detector
·Environmental Monitoring
·Handheld Air Quality Detector
Technical Measurement Indexes
| Parameter | Range | Accuracy |
| PM1.0 | 0-1000μg/m3 | ±10% or ±10μg/m3 |
| PM2.5 | 0-1000μg/m3 | ±10% or ±10μg/m3 |
| PM10 | 0-1000μg/m3 | ±15% or ±15μg/m3 |
| BSP* | 0-600μg/m3 | ±15% or ±15μg/m3 |
Specification Parameters
Data Interface: UART TTL, 9600 bps
Power Supply: DC 5±0.5V, Ripple＜50mV
Working Condition: Temp: -15-60℃; Humidity: 0-90% RH
Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH
Weight: 27g
Size: 45mm x 45mm x 14.5mm
MTTF: ≥30000H
Product Classification
| PN | Range (μg/m3) | Product Type | Packing Specification | L*W*H (mm) |
| PS53013 | 0-1000 | PM1.0, PM2.5, PM10, BSP | 40 pcs/box, 10 boxes/ctn | 510*295*295 |
