Laser PM2.5 Particle Detector
Key Specifications / Features
We Provide Laser PM2.5 Particle Detectors, PM2.5 Particles Laser Detectors, of 26g, DC 5±0.5V, Ripple < 50mV, UART TTL, 9600 bps.
Detail Information

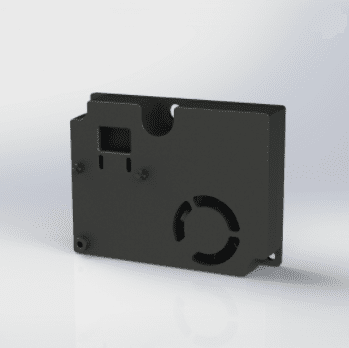

PM2.5 Particles Detection Laser Dust Sensor Detector
Model Number: PS5308A
Measuring type: PM2.5
Range: 0-1000 ug/m3
Weight: 26g
Working current: ≤ 80 mA
Working voltage: DC 5±0.5V, Ripple<50mV
Working condition:
Temp: -15°C-60°C
Humidity: 0-90% RH
Storage condition:
Temp: -30°C-70°C
Humidity: 0-90% RH
Data interface: UART TTL, 9600 bps
| Product Model | PS5308A |
| Brand | PULSE |
| Origin | Chengdu，China |
| Size（mm) | 48*37*12 |
| Measuring type | PM2.5 |
| Range | 0-1000 ug/ m³ |
| Weight | 26g |
| Working current | ≤ 80 mA |
| Working voltage | DC 5±0.5V，Ripple<50mV |
| Working condition | Temp: -15°C-60°C Humidity: 0-90% RH |
| Storage condition | Temp: -30°C-70°C Humidity: 0-90% RH |
| Data interface | UART TTL , 9600 bps |
