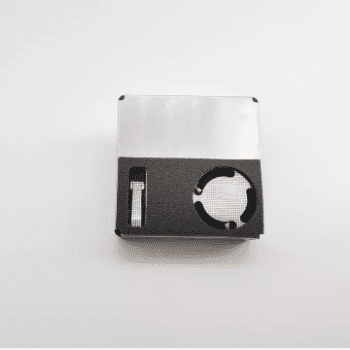

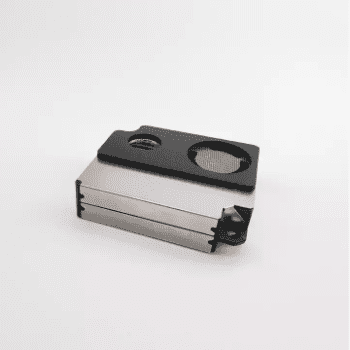

Laser Dust Sensor PM10 Monitor
Key Specifications / Features
We Provide Laser Dust Sensor PM10 Monitors, Environmental Monitoring Anti-interference Capability Laser Particle Sensor PM10 Monitors, of 26g, UART TTL.
Request a quote
Detail Information
Environmental Monitoring Anti-interference Capability Laser Dust Sensor PM10 Monitor
Model Number: PS5308-M/B
Measuring type: PM10
Range: 0-1000 ug/m3
Weight: 26g
Working current: ≤ 80 mA
Working voltage: DC 5±0.5V, Ripple<50mV
Working condition:
Temp: -15℃-60℃
Humidity: 0-90% RH
Storage condition:
Temp: -30℃-70℃
Humidity: 0-90% RH
Data interface: UART TTL, 9600 bps
Model Number: PS5308-M/B
Measuring type: PM10
Range: 0-1000 ug/m3
Weight: 26g
Working current: ≤ 80 mA
Working voltage: DC 5±0.5V, Ripple<50mV
Working condition:
Temp: -15℃-60℃
Humidity: 0-90% RH
Storage condition:
Temp: -30℃-70℃
Humidity: 0-90% RH
Data interface: UART TTL, 9600 bps
| Product Model | PS5308A |
| Brand | PULSE |
| Origin | Chengdu，China |
| Size（mm) | 48*37*12 |
| Measuring type | PM2.5 |
| Range | 0-1000 ug/m³ |
| Weight | 26g |
| Working current | ≤ 80 mA |
| Working voltage | DC 5±0.5V，Ripple<50mV |
| Working condition | Temp: -15℃-60℃ Humidity: 0-90% RH |
| Storage condition | Temp: -30℃-70℃ Humidity: 0-90% RH |
| Data interface | UART TTL , 9600 bps |
