Laser Particle Detection Sensor, PM10, PM2.5, PM1.0, BSP
Key Specifications / Features
We Provide Laser Particle Detection Sensors, Particle Detection Sensors for Indoor And Outdoor, Air Tiny Particles, PM1.0, PM2.5, PM10, BSP, 27 g.
Request a quote
Detail Information

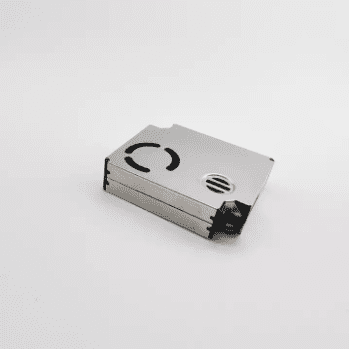

Laser Digital Particle Detection Sensor For Indoor And Outdoor Air Tiny Particles PM10 Monitor
Model Number: PS53013
Measuring type: PM1.0, PM2.5, PM10, BSP
Range: 0-1000 ug/m3
Weight: 27 g
Working current: ≤ 80 mA
Working voltage: DC 5±0.5V, Ripple <50mV
Working condition:
Temp: -15℃-60℃
Humidity: 0-90% RH
Storage condition:
Temp: -30℃-70℃
Humidity: 0-90% RH
Data interface: UART TTL, 9600 bps
Model Number: PS53013
Measuring type: PM1.0, PM2.5, PM10, BSP
Range: 0-1000 ug/m3
Weight: 27 g
Working current: ≤ 80 mA
Working voltage: DC 5±0.5V, Ripple <50mV
Working condition:
Temp: -15℃-60℃
Humidity: 0-90% RH
Storage condition:
Temp: -30℃-70℃
Humidity: 0-90% RH
Data interface: UART TTL, 9600 bps
| Product Model | PS53013 |
| Brand | PULSE |
| Origin | Chengdu,China |
| Size（mm) | 45mm*45mm*14.5mm |
| Measuring type | PM1.0, PM2.5, PM10, BSP |
| Range | 0-1000 ug/m³ |
| Weight | 27g |
| Working current | ≤ 80 mA |
| Working voltage | UART TTL , 9600 bps |
| Working condition | Temp: -15℃-60℃ Humidity: 0-90% RH |
| Storage condition | Temp: -30℃-70℃ Humidity: 0-90% RH |
| Data interface | UART TTL , 9600 bps |
