Infrared Particle Detection Sensor, PM2.5
Key Specifications / Features
We Provide Infrared Particle Sensors, Infrared Particle Detection Sensors For Outdoor Environment, PM2.5, 0-500 ug/m3, UART TTL, 9600 bps, 25 g.
Request a quote
Detail Information

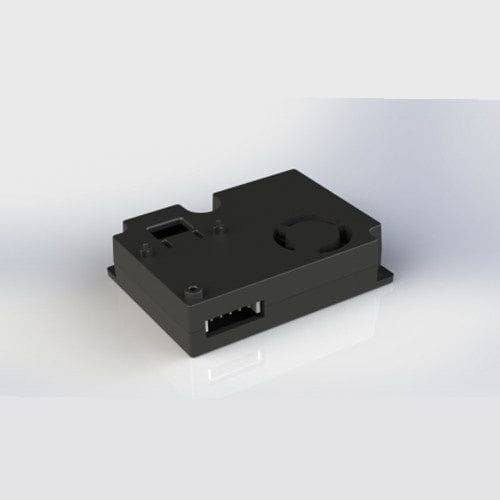

Particle Detection Infrared Dust Sensor Suitable For Outdoor Environment
Model Number: PS53014
Measuring type: PM2.5
Range: 0-500 ug/m3
Weight: 25 g
Working current: ≤ 120 mA
Working voltage: DC 5±0.5V, ripple <50mV
Working condition:
Temp: -10℃-50℃
Humidity: 0-90% RH
Storage condition:
Temp: -20℃-60℃
Humidity: 0-90% RH
Data interface: UART TTL, 9600 bps
Model Number: PS53014
Measuring type: PM2.5
Range: 0-500 ug/m3
Weight: 25 g
Working current: ≤ 120 mA
Working voltage: DC 5±0.5V, ripple <50mV
Working condition:
Temp: -10℃-50℃
Humidity: 0-90% RH
Storage condition:
Temp: -20℃-60℃
Humidity: 0-90% RH
Data interface: UART TTL, 9600 bps
| Product Model | PS53014 |
| Brand | PULSE |
| Origin | Chengdu,China |
| Size（mm) | W59*H45*D20(mm) |
| Range | 0-500 ug/ m³ |
| Weight | 25g |
| Working current | ≤ 120 mA |
| Working voltage | DC 5±0.5V , ripple<50mV |
| Working condition | Temp: -10℃-50℃ Humidity: 0-90% RH |
| Storage condition | Temp: -20℃-60℃ Humidity: 0-90% RH |
| Data interface | UART TTL , 9600 bps |
