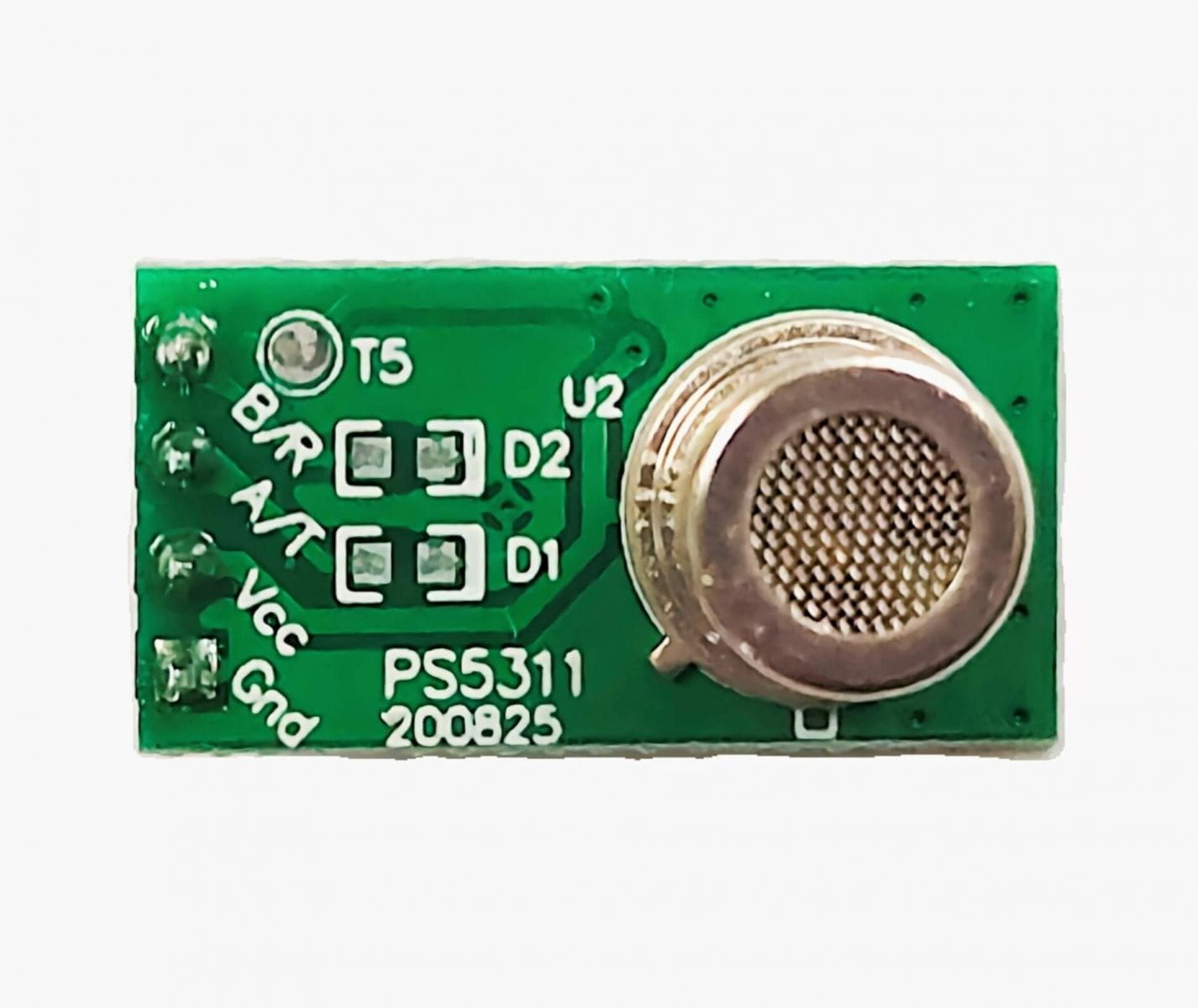

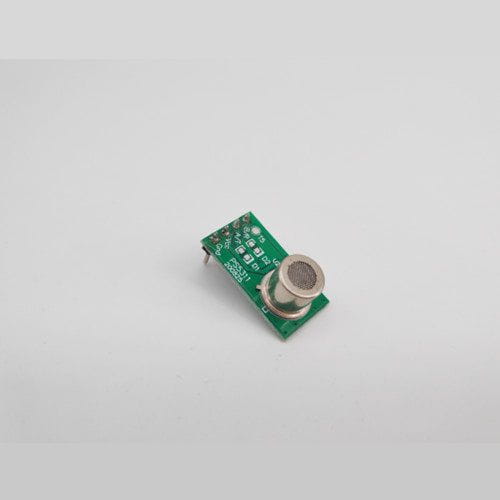

High Resolution TVOC Gas Sensor Module, DC 4.8-5.2V
Key Specifications / Features
TVOC Gas Sensor Module Factory: High Resolution TVOC Detection Modules, Slow Rate of Decay, Gas Sensory Semiconductor Principle, DC 4.8-5.2V, TTL Interface.
Request a quote
Detail Information
Features
·Principle of gas sensory semiconductor
·Low power consumption
·High resolution
·Multi interface output
·Excellent stability
·Strong anti-interference ability
·Calibrated before leaving the factory
·Slow rate of decay
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Vehicle Air Purifier
·Air Quality Monitor
·Environmental Monitoring
·Handheld Air Quality Detector
Specification Parameters
Measurement Type: CH2O, C6H6, CO, H2, C2H6O, NH3, Cigarette Smoke, Essence, etc
Power Voltage: 4.8-5.2V DC
Output Range: 0-9.999mg/m3
Supply Voltage: ＜60mA avr.
Preheating Time: ≤3min
Response Time: T90＜20s
Recovery Time: ＜60s
Attenuation of Sensitivity: ≤1% each year
Data Interface: TTL 5V
Working Condition: Temp.: 0-50℃; Humidity: 15-90% RH
Storage Condition: Temp.: -20-50℃; Humidity: ＜60% RH
Size: 24 x 20 x 15 mm
Product Lifespan: ＞10 years
Product Classification
·Principle of gas sensory semiconductor
·Low power consumption
·High resolution
·Multi interface output
·Excellent stability
·Strong anti-interference ability
·Calibrated before leaving the factory
·Slow rate of decay
Application Environments
·Air Purifier
·Fresh Air System
·Air Conditioner
·Vehicle Air Purifier
·Air Quality Monitor
·Environmental Monitoring
·Handheld Air Quality Detector
Specification Parameters
Measurement Type: CH2O, C6H6, CO, H2, C2H6O, NH3, Cigarette Smoke, Essence, etc
Power Voltage: 4.8-5.2V DC
Output Range: 0-9.999mg/m3
Supply Voltage: ＜60mA avr.
Preheating Time: ≤3min
Response Time: T90＜20s
Recovery Time: ＜60s
Attenuation of Sensitivity: ≤1% each year
Data Interface: TTL 5V
Working Condition: Temp.: 0-50℃; Humidity: 15-90% RH
Storage Condition: Temp.: -20-50℃; Humidity: ＜60% RH
Size: 24 x 20 x 15 mm
Product Lifespan: ＞10 years
Product Classification
| PN | Range (mg/m3) | Product Type | Packing Specification | L*W*H (mm) |
| PS5311 | 0-9.999 | CH2O, C6H6, CO, H2, C2H6O, NH3, Cigarette Smoke, Essence, etc | / | / |
