CS, SS G Type Finned Tube, OD 3/4-2In
Key Specifications / Features
G Type Fin Tube Supplier: Continuous Spiral Finned Tubes, G Type, Carbon Steel, Stainless Steel, OD 3/4-2 Inch(19.05-50.8 mm), Fin H 1/2-5/8 Inch.
Request a quote
Detail Information
Embedded Finned Tube G Type Finned Tube
Maximum Operating Temperature-450 °C:
a) Fin Material: Aluminum/Carbon Steel.
Fin Height: 1/2" to 5/8" (12.7mm to 15.87mm).
Fin Pitch: 8 fins/inch to 11 fins/inch (316 fins/meter to 433 fins/meter).
Continuous Spiral G Type Fins, G Type Finned Tubes
b) Base Tube Diameter: 3/4" to 2" (19.05mm to 50.8mm).
Tube Material: Carbon Steel/Stainless Steel.
Application More specifically used in Air Cooled Exchangers OR Condensers

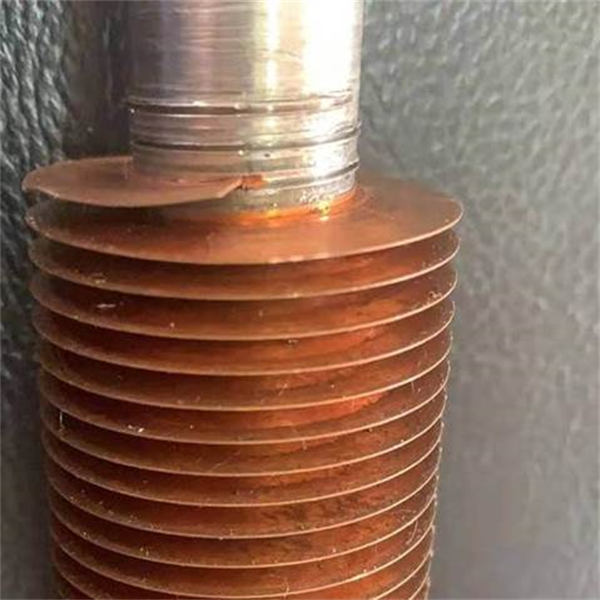

(Embedded Fin)The fin strip is wound into a machined groove and securely locked into place by back filling with base tube material. This ensures that maximum heat transfer is maintained at high tube metal temperatures. Maximum operating temperature for this fin type is 450°C.
Maximum Operating Temperature-450 °C:
a) Fin Material: Aluminum/Carbon Steel.
Fin Height: 1/2" to 5/8" (12.7mm to 15.87mm).
Fin Pitch: 8 fins/inch to 11 fins/inch (316 fins/meter to 433 fins/meter).
Continuous Spiral G Type Fins, G Type Finned Tubes
b) Base Tube Diameter: 3/4" to 2" (19.05mm to 50.8mm).
Tube Material: Carbon Steel/Stainless Steel.
Application More specifically used in Air Cooled Exchangers OR Condensers
(Embedded Fin)The fin strip is wound into a machined groove and securely locked into place by back filling with base tube material. This ensures that maximum heat transfer is maintained at high tube metal temperatures. Maximum operating temperature for this fin type is 450°C.
