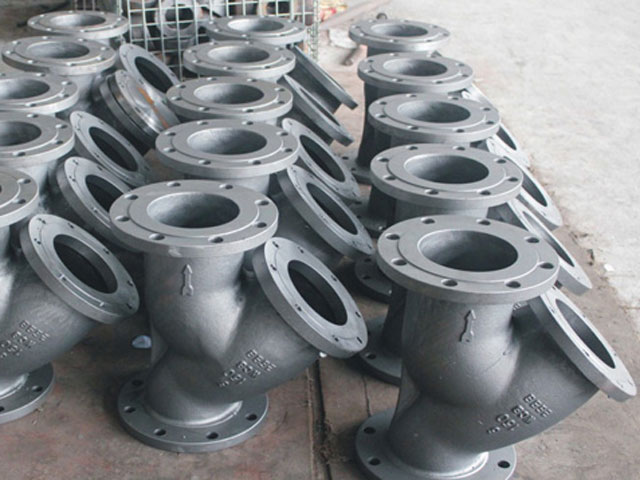

Y-Pattern Strainer
Key Specifications / Features
Y-Pattern Strainer Manufacturer in China: Y-Pattern Strainer, 2 Inch - 12 Inch, CL150 - CL300, ASTM A216 WCB, LCB, ASME B16.34, ASME B16.5, API 598.
Request a quote
Detail Information
Topper manufactures Y-pattern strainers with the following features:
1. A strainer is called Y-Pattern Strainer as its strainer screen and valve body form a sharp angle like the letter "Y".
2. A Y-pattern strainer is usually composed of a valve body, a double-layer stainless steel filter screen as well as a seal washer.
3. The core part of filter is a strainer screen which is composed of a strainer screen frame and stainless steel wire.
4. A Y-pattern strainer is a product that separates solid particles from fluids, which improves the purity of products and guarantees equipment safety.
Product Details:
Design standard: ASME B16.34.
Length of structure: ASME B16.10.
Flange connecting end: ASME B16.5.
Wall thickness: ASME B16.34.
Inspection and test: API 598.
Pressure and temperature rating: ASME B16.34.
Product scope: NPS 2 Inch - NPS 12 Inch, CL150 - CL300.
Main body material: ASTM A216 WCB, ASTM A352 LCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A890 4A, ASTM A105, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F51, ASTM A182 F91, ASTM A182 F304, ASTM A182 F316, ASTM A182 F304L, ASTM A182 F316L, etc.
1. A strainer is called Y-Pattern Strainer as its strainer screen and valve body form a sharp angle like the letter "Y".
2. A Y-pattern strainer is usually composed of a valve body, a double-layer stainless steel filter screen as well as a seal washer.
3. The core part of filter is a strainer screen which is composed of a strainer screen frame and stainless steel wire.
4. A Y-pattern strainer is a product that separates solid particles from fluids, which improves the purity of products and guarantees equipment safety.
Product Details:
Design standard: ASME B16.34.
Length of structure: ASME B16.10.
Flange connecting end: ASME B16.5.
Wall thickness: ASME B16.34.
Inspection and test: API 598.
Pressure and temperature rating: ASME B16.34.
Product scope: NPS 2 Inch - NPS 12 Inch, CL150 - CL300.
Main body material: ASTM A216 WCB, ASTM A352 LCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M, ASTM A890 4A, ASTM A105, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F51, ASTM A182 F91, ASTM A182 F304, ASTM A182 F316, ASTM A182 F304L, ASTM A182 F316L, etc.
Send your message to this supplier
FAQs
OS&Y stands for Outside Screw and Yoke. This design places the threaded stem outside the valve body, with the yoke supporting the stem. It allows users to visually verify whether the valve is open or closed by observing the stem’s position.
OS&Y gate valves are commonly used in fire protection systems, including sprinklers, hydrants, and standpipes, due to their reliability and clear open/close indication.
