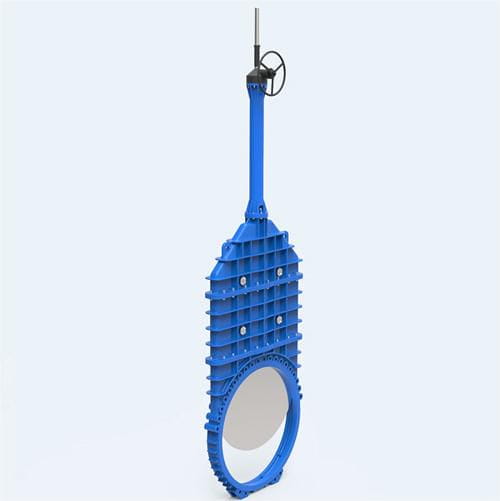

Unidirectional Seal Knife Gate Valve, MSS SP-81, 88-120 Inch

Name: Unidirectional Seal Knife Gate Valve, MSS SP-81, 88-120 Inch
SKU: MFRS-230905-GV-11
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Presenting our High-Pressure Unidirectional Seal Knife Gate Valve in sizes ranging from 20 to 80 inches, designed to handle pressures up to 25 Bar and in sizes from 88 to 120 inches, capable of handling 16 Bar. Crafted from ASTM A182, ASTM A351, and ASTM A216 WCB materials, these valves ensure reliable performance under high-pressure conditions.

Request a quote

Detail Information

Type: Wafer
Working Pressure: DN500 - DN2000, 20 - 80 Inch, 25 bar, DN2200 - DN3000, 88 - 120 Inch, 16 bar
Design Standard: MSS SP-81
Flange Standard: DIN PN10, PN16, 150 LB, JIS 10K, TABLE E/D
Face to Face: MSS SP-81
Testing Standard: EN 12266
Transmission: handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear
Main material: ASTM A182 F55, F53, 2205, SS 310, ASTM A351 CF3M, CF3, CF8M, CF8, ASTM A216 WCB
Disc material: F55, F53, 2205, SS 310, SS 316L, SS 316, SS 304
Sealing material: NBR, NR, EPDM, FKM, Metal to Metal
Packing: PTFE,high water based,rubber packing,graphite
Applicable medium: Applicable for coal in power plant, slag discharge, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, cereals, slaughter plant waste and other media.
Bi-directional seal available
