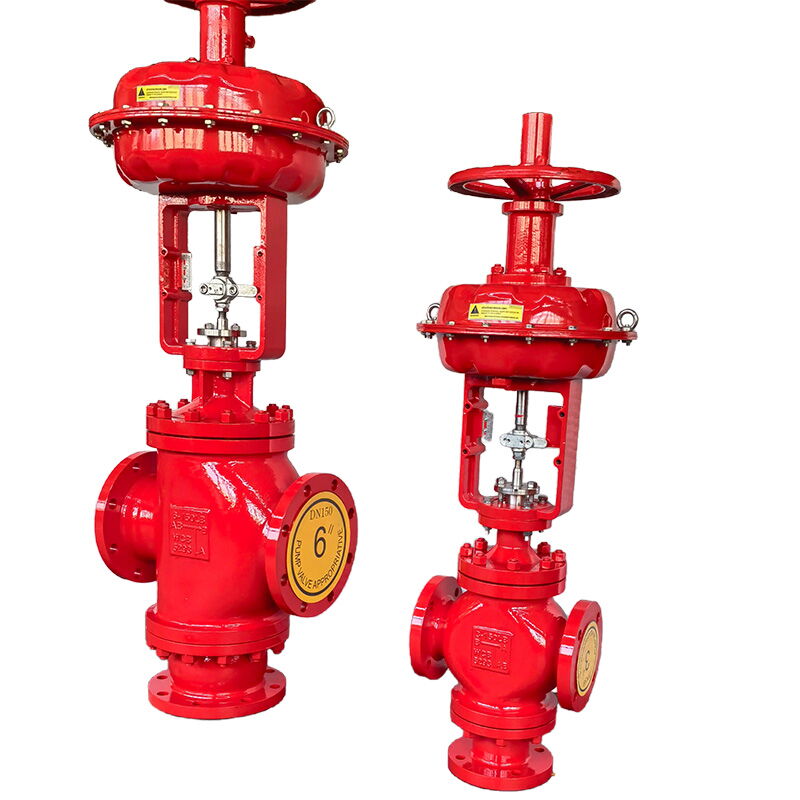

Pneumatic Top-Guided Control Valve, WC6, 1/2-8IN, 150-600 LB

Name: Pneumatic Top-Guided Control Valve, WC6, 1/2-8IN, 150-600 LB
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a top-guided control valve producer, we offer a robust range of pneumatic actuators designed for precise control in various applications. Our valves are available in sizes from 1/2 to 8 inches and come with a range of pressure classes, from 150 to 600 LB, to accommodate diverse industrial requirements. Constructed with premium materials such as ASTM A217 WC6 and ASTM A352 LCB, these valves ensure exceptional strength and corrosion resistance.

Request a quote

Detail Information

Body Type
Straight-through, Top-Guided

Nominal Size
1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, 2-1/2 Inch, 3 Inch, 4 Inch, 5 Inch, 6 Inch, 8 Inch

Pressure Rating
• ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
• JIS 10K, 16K, 20K, 30K, 40K
• PN1.6, 4.0, 6.4, 10.0 Mpa

End Connection
• Flanged End: FF, RF, RJ, LG
According to ANSI B16.5, JIS B2201, JB/T79.1, JB/T79.2
• Welded End: SW, BW
• Threaded End: Rc

Material
ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351, CF8M, ASTM A351 CF3M, ASTM A351 CF3

Bonnet
• Plain bonnet (-17 to 230°C)
• Extension bonnet (-45 to -17°C and 230 to 566°C)

Cryogenic Integral cast type (-100 to -45°C)

Welded type (-196 to -100°C)
• Bellows type
