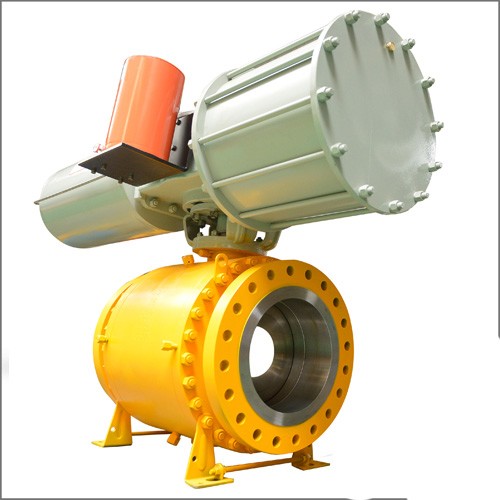

Pneumatic Actuated Ball Valve, API 6D, A105, 24 Inch, 150 LB
Model Number: MFRS-231205-TMBV-07
Key Specifications / Features
Discover precision and control with our API 6D pneumatic actuated ball valve. This valve, measuring 24 inches and rated at Class 150 LB, offers unparalleled performance for diverse applications. Crafted from high-quality ASTM A105 material, it ensures durability and reliability in challenging environments. With a DN600 size and PN20 rating, this valve is designed to meet the demands of various industrial processes.
Detail Information
Valve description:
Name: Side entry trunnion mounted ball valve, with pneumatic actuator.
Design: API 6D.
Body: ASTM A105.
Nominal size: 24 Inch.
Nominal class: Class 150.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Side entry trunnion mounted ball valve, with pneumatic actuator.
Design: API 6D.
Body: ASTM A105.
Nominal size: 24 Inch.
Nominal class: Class 150.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Side Entry Trunnion Mounted Ball Valve | |
| Nominal diameter | 2" - 56" | (DN50-DN1400) |
| Design temp. | -46℃ - 121℃ | |
| Design pressure | class 150 - 2500 | (PN16-PN420) |
| Material | WCB, LCB, CF8M, A105, LF2, F316 | |
| Design standard | API 6D, ISO 17292 | |
| Face to face | ASME B16.10 | EN558 series |
| Connection end | ASME B16.5, ASME B16.25 | EN1092-1 series |
| Test standard | API 598, API 6D | EN 12266-1 |
| Operation | level, worm gear, electric, pneumatic | |
| Application fields | water, petroleum and natural gas | |
| Feature 1 | full bore, reduce bore | |
| Feature 2 | locking device | |
| Feature 3 | anti-blow out stem | |
| Feature 4 | fire safe and Anti-static device | |
| Feature 5 | DBB / double block and bleed | |
| Feature 6 | stem & seats to be equipped injection fitting | |
