BS 1868 Swing Check Valve, ASTM A216 WCB, 20 Inch, 600 LB

Name: BS 1868 Swing Check Valve, ASTM A216 WCB, 20 Inch, 600 LB
SKU: MFRS-230814-CV-02
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

If you're in need of a trustworthy provider for Cast Steel Swing Check Valves, your search ends here. Explore our exceptional range of valves expertly crafted from durable ASTM A216 WCB steel.Our valve range encompasses various sizes, including 20 inches, capable of handling pressures up to 600 LB, DN500, and PN100. With standardized attributes such as adherence to BS 1868 and API 594 guidelines, bonnets secured by bolts, swing design, trim option 1, and flanged RF connection, our valves are engineered for long-term resilience. Rely on us to cater to all your check valve requirements.

Request a quote

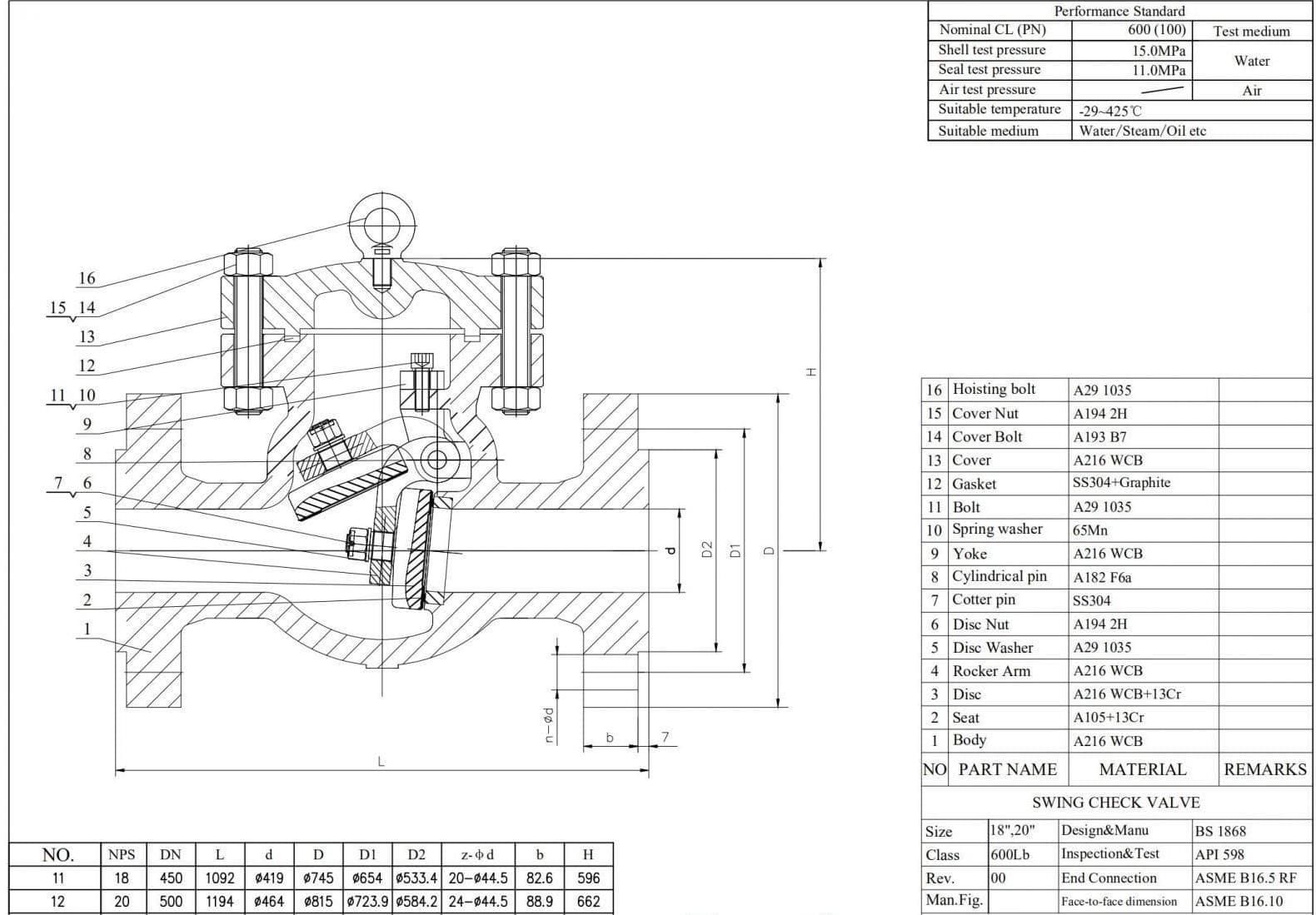

Detail Information

Design Standard: BS 1868, API 594
Structure: Bolted Bonnet, Swing type
Bore Type: Standard Bore
Body Material: ASTM A216 WCB
Trim Material: 1Cr13, No.1
Face to face: ASME B16.10
Test and inspection: API 598
Nominal size: 20 Inch
Nominal class: 600 LB
End Connection: RF (Raised Face)
Key Features: Swing Disc, Renewable Seat

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 32 Inch (DN50 - DN800)
Pressure range: Class 150 - 2500 LB
Working temperature: -29℃ - +425℃
End connection: RF, RTJ, BW
