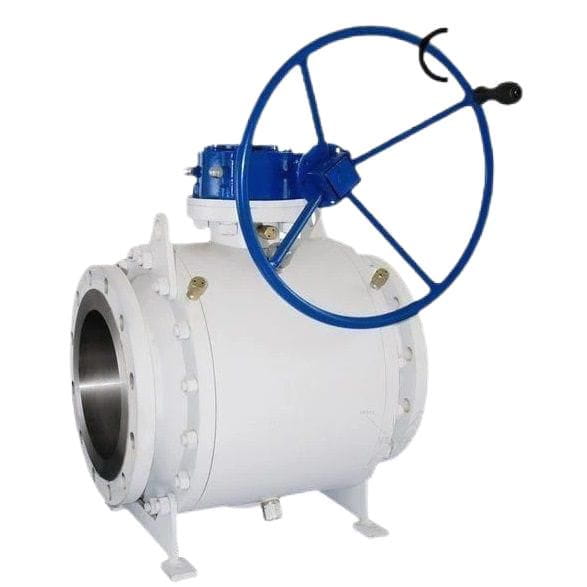

ASTM A350 LF2 Trunnion Ball Valve, API 6D, 20 In, 600 LB

Name: ASTM A350 LF2 Trunnion Ball Valve, API 6D, 20 In, 600 LB
SKU: MFRS-230823-BV-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Discover our Trunnion Ball Valve, meticulously designed to meet API 6D standards. Crafted from a selection of premium body materials including Carbon, Stainless, and Alloy Steel, with a foundation in ASTM A350 LF2. With a size of 20 inches (DN500) and engineered for a Class 600 LB rating (PN100), this valve assures exceptional performance. Featuring RTJ Ends as the end connection, it guarantees secure and efficient operation across a diverse range of applications.

Request a quote

Detail Information

Design standard: API 6D.
Body material: ASTM A350 LF2.
Nominal diameter: 20 Inch, DN500
Pressure: Class 600 LB, PN100
Face to face: ASME B16.10.
Working temperature: -29℃ - +200℃.
Test and inspection: API 598.
End connection: RTJ.

Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 2-60 Inch (DN50-DN1500).
Pressure range: Class 150-2500 LB (PN16-PN420).
Working temperature: -46℃ - +200℃.
End connection: BW, Flanged.
Operation: Lever, Gearbox, Electric, Pneumatic, Electro-Hydraulic Actuator, Gas Over Oil Actuator.
