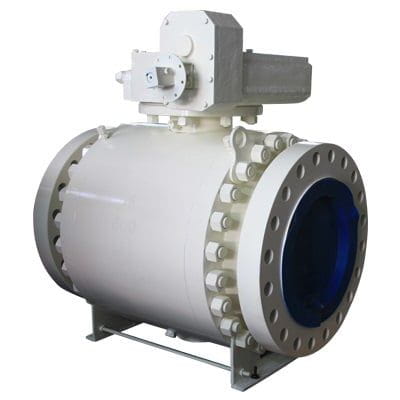

API 6D Ball Valve, ASTM A216 WCB, 20 Inch, Class 600, RF
Model Number: MFRS-230823-BV-04
Key Specifications / Features
Presenting our RF Trunnion Mounted Ball Valve, meticulously designed to adhere to API 6D standards. Available in cast, stainless, and alloy steel options, with the body crafted from ASTM A216 WCB material. Sized at 20 inches (DN500) and engineered for a Class 600 LB rating (PN100), this valve guarantees reliable performance across diverse applications.
Detail Information
Valve Description:
Design standard: API 6D
Body material: ASTM A216 WCB
Nominal diameter: 20 Inch, DN500
Pressure: Class 600 LB, PN100
Face to face: ASME B16.10
Test and inspection: API 598
Working temperature: -29℃ - +200℃
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2-60 Inch (DN50-DN1500)
End connection: BW, Flanged
Pressure range: Class 150-2500 LB (PN16-PN420)
Working temperature: -46℃ - +200℃.
Operation: Lever, Gearbox, Electric, Pneumatic, Electro-Hydraulic Actuator, Gas Over Oil Actuator
