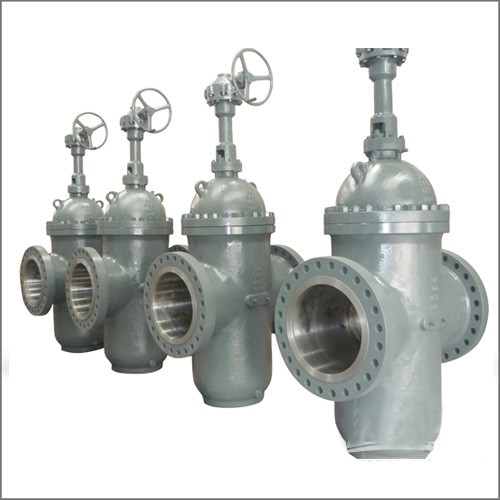

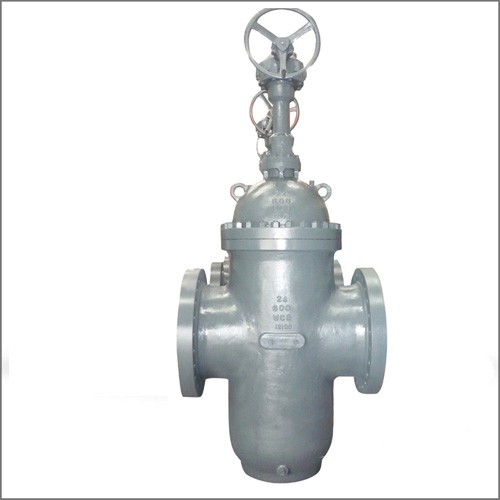

ASTM A216 WCB Flat Gate Valve, API 6D, 22 Inch, 600 LB
Key Specifications / Features
Introducing our Flat Gate Valves, expertly crafted for exceptional performance. Constructed from robust Cast Steel ASTM A216 WCB material, these valves adhere to both API 6D and ASME B16.34 standards. With a size of 22 inches (DN550), they operate seamlessly under Class 600 LB and PN100 pressure ratings. Equipped with RF connections and featuring a gearbox for smooth operation, these valves offer reliable control in various applications.
Request a quote
Detail Information
Detail Infomation
Name: Flat Gate Valve
Standard: API 6D, ASME B16.34
Material: Cast Steel ASTM A216 WCB
Size: DN550, 22 Inch
Pressure: Class 600 LB, PN100
Connection: RF Flanged Raised Face
Power: Gearbox
Temperature Of Media: -54℃ To 232℃
Product Range
Size: 2 - 40 Inch
Pressure: Class 150-900 LB
Product Material: Carbon & Low-alloy steel, STL, Nickel bare alloy
Power: Gearbox, Manual, Pneumatic, Solenoid, Electrical Actuated
Connection: RF Flange, Butt Welding
Information:
Flat gate valve widely used in oil, natural gas long-distance pipelines and gas fields Valves used in forging or casting body, the gate designed with diversion holes, non-diversion holes; single discard double disc structure; Seat used bi-direction seal seat which mainly based on the metal seat sealing and assisted with soft seat sealing as the second type of seal. The series of parallel type gate valves has a rational design, compact structure, sulfur resistance, corrosion resistance, wear-resistant, reliable sealing, and light torque of switches, easy-to-use.
Design Standard:
Test: API 6D, API 598
Basic Design: API 6D, ASME B16.34
Detail Infomation
Name: Flat Gate Valve
Standard: API 6D, ASME B16.34
Material: Cast Steel ASTM A216 WCB
Size: DN550, 22 Inch
Pressure: Class 600 LB, PN100
Connection: RF Flanged Raised Face
Power: Gearbox
Temperature Of Media: -54℃ To 232℃
Product Range
Size: 2 - 40 Inch
Pressure: Class 150-900 LB
Product Material: Carbon & Low-alloy steel, STL, Nickel bare alloy
Power: Gearbox, Manual, Pneumatic, Solenoid, Electrical Actuated
Connection: RF Flange, Butt Welding
Information:
Flat gate valve widely used in oil, natural gas long-distance pipelines and gas fields Valves used in forging or casting body, the gate designed with diversion holes, non-diversion holes; single discard double disc structure; Seat used bi-direction seal seat which mainly based on the metal seat sealing and assisted with soft seat sealing as the second type of seal. The series of parallel type gate valves has a rational design, compact structure, sulfur resistance, corrosion resistance, wear-resistant, reliable sealing, and light torque of switches, easy-to-use.
Design Standard:
Test: API 6D, API 598
Basic Design: API 6D, ASME B16.34
