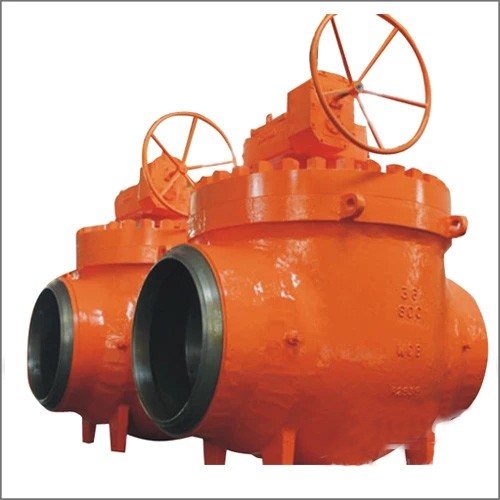

ASTM A216 WCB Ball Valve, API 6D, 32 IN, 900 LB, Ring Joint
Model Number: MFRS-240109-TMBV-04
Key Specifications / Features
Introducing our cutting-edge mill in China, specializing in the production of Carbon Steel ASTM A216 WCB jacketed ball valves. Crafted to meet API 6D standards, our 32-inch valve is engineered for superior performance. With a Class 900 LB rating, DN800 size, and PN150 pressure rating, this valve ensures efficient flow control in critical applications.
Detail Information
Standard: API 6D.
Body Material: ASTM A216 WCB.
Nominal Diameter: 32 Inch, DN800.
Pressure: Class 900 LB, PN150.
End Connection: RTJ.
Face To Face: ASME B16.10.
Working Temperature: -29℃ - +200℃.
Operation: Gearbox.
Test And Inspection: API 6D, API 598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2 - 60 Inch (DN50 - DN1500).
End Connection: BW, Flanged.
Pressure Range: 150 - 2500 LB (PN16 - PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃ - +200℃.
Body Material: ASTM A216 WCB.
Nominal Diameter: 32 Inch, DN800.
Pressure: Class 900 LB, PN150.
End Connection: RTJ.
Face To Face: ASME B16.10.
Working Temperature: -29℃ - +200℃.
Operation: Gearbox.
Test And Inspection: API 6D, API 598.
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal Diameter: 2 - 60 Inch (DN50 - DN1500).
End Connection: BW, Flanged.
Pressure Range: 150 - 2500 LB (PN16 - PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actuator, Gas Over Oil Actuator.
Working Temperature: -46℃ - +200℃.
