Low Pressure Insulation Gasket Kits, Type E/F, G7, G10, G11

Name: Low Pressure Insulation Gasket Kits, Type E/F, G7, G10, G11
SKU: LPF-20241109-PG-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Low Pressure Insulation Gasket Kits are designed for reliable flange insulation, featuring Type E/F gaskets made from high-quality materials such as plain phenolic, neoprene, PTFE, G7, G10, and G11. These kits provide effective sealing and electrical insulation in low-pressure systems, offering durability and resistance to wear, chemicals, and temperature variations for a wide range of industrial applications.

Request a quote

Detail Information

Product Name: Flange Insulation Gasket Kits, Low Pressure Insulation Kits
Gasket Types: Type E Gasket, Type F Gasket
Materials: Plain Phenolic, Neoprene, PTFE, G-7, G-10, G-11, etc.
Range of Insulation Gasket Kits: CHG Higher Pressure Gaskets, CLG Low Pressure Gaskets, Insulation Sleeves, Washers
Insulation Gasket Materials: Nitrile, EPDM, VITON and Teflon/PTFE
We provide the sets of kits or the insulation gaskets, insulation sleeves, insulation washers separately.

Features:

SEALS CLG is available in both full-face (Type E) and ring style (Type F) configurations.
Depending upon the sealing element selected, the CLG is rated for most all hydrocarbon and water service applications.
Both retainer and sealing element's temperature limit should be considered together while choose the material.

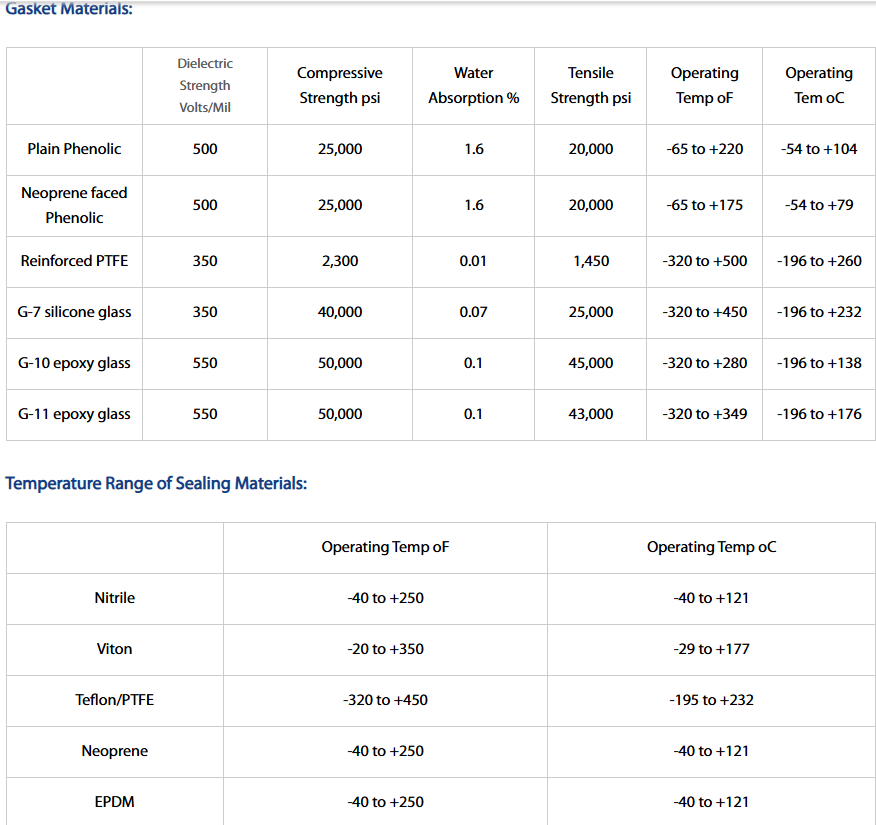

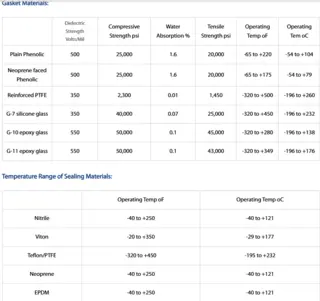

Refer to chart for sealing gasket temperature range and material compatibilities.
