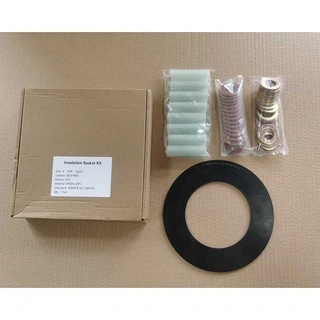

Flange Insulation Gasket Kit, Neoprene Faced Phenolic, 4 IN
Key Specifications / Features
This flange insulation gasket kit prevents galvanic corrosion and electrical continuity between dissimilar metal flanges. It features a neoprene-faced phenolic gasket for reliable sealing and dielectric isolation. The kit includes polyethylene sleeves and phenolic washers to insulate bolt assemblies. Sized at 4 inches (DN100) with Class 150 LB rating, it meets ANSI B16.20 dimensions for standard pipe flanges. It is suitable for cathodic protection systems, chemical processing, and applications requiring electrical isolation.
Request a quote
Detail Information
Product Name: Flange Insulation Gasket Kit
Design Standard: ANSI B16.20
Size: 4 Inch, DN100
Pressure Rating: Class 150 LB, PN20, Raised Face (RF)
Gasket Material:
Phenolic Resin Base (Thickness: 3.2 mm)
Neoprene Cover (2 × 1.5 mm)
Kit Components:
One Polyethylene Sleeve per Bolt
Two Phenolic Washers per Bolt
Two Stainless Steel Washers per Bolt
Stainless Steel Bolts and Two Nuts
