SS S31254 Welded Neck Flange, PN10

Name: SS S31254 Welded Neck Flange, PN10
SKU: LF 14 WNF 18
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China SS S31254 Welded Neck Flange Manufacturer: PN10, Stainless Steel Welded Neck Flanges, ASTM A182 F316H, EN 1759, HG 20595, DN15-200 (1/2-8 Inch).

Request a quote

Detail Information

Product: Stainless Steel Welded Neck Flange.

Type: Welded Neck Flange.

Materials: ASTM A182, Stainless Steel.

Grades: F316H, S31254.

Standards: EN 1759, HG 20595.

Pressure: PN10.

Sizes: DN15-DN200 (1/2-8 Inch).

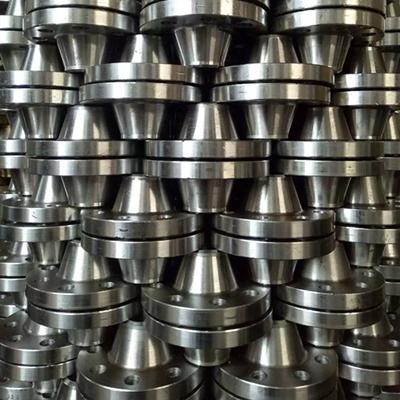

SS S31254 Welded Neck Flange, PN10 - Landee Flange

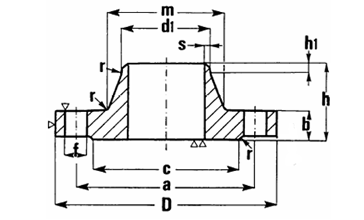

Directions for the designation		d1	a	b	D	f	h	h1	m	r	s	Holes	Screws	Weight*
Rated	External diameter													Kg
Diameter	of the flange
15	20	21	55	12	80	11	30	6	28	4	2,5	4	M 10	0,45
	21,3	22,5							30					0,45
20	25	26	65	14	90	11	32	6	35	4	2,5	4	M 10	0,66
	26,9	28							38					0,66
25	30	31	75	14	100	11	35	6	40	4	2,8	4	M 10	0,83
	33,7	34,5							42					0,82
32	38	39	90	14	120	14	35	6	50	6	3	4	M 12	1,18
	42,4	43,5							55					1,16
40	44,5	45,5	100	14	130	14	38	7	58	6	3	4	M 12	1,40
	48,3	49,5							62					1,38
50	57	58	110	14	140	14	38	8	70	6	3,5	4	M 12	1,58
	60,3	61,5							74					1,56
65	76,1	77	130	14	160	14	38	9	88	6	3,5	4	M 12	1,95
80	88,9	90	150	16	190	18	42	10	102	8	3,7	4	M 16	3,07
100	108	109	170	16	210	18	45	10	122	8	3,7	4	M 16	3,68
	114,3	115,5							130					3,56
125	133	134	200	18	240	18	48	10	148	8	4	8	M 16	5,04
	139,7	141							155					4,80
150	159	161	225	18	265	18	48	12	172	10	5	8	M 16	5,75
	168,3	170,5							184					5,52
175	193,7	195,5	255	20	295	18	52	12	208	10	5	8	M 16	7,22
200	219,1	221	280	20	320	18	55	15	236	10	5	8	M 16	8,16
