DIN 2632 RF Weld Neck Flange, DN10-DN400

Name: DIN 2632 RF Weld Neck Flange, DN10-DN400
SKU: LF 14 WNF 19
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

China DIN 2632 RF Weld Neck Flange Proveider: DN10-DN400 (3/8-16 Inch) Weld Neck Flanges, Raised Face, ASTM A515, DIN 2631, DIN 2632, DIN 86041, PN10.

Request a quote

Detail Information

Product: RF Welded Neck Flange.

Type: Welded Neck Flange.

Materials: ASTM A515.

Face: RF.

Standards: DIN 2632, DIN 2631, DIN 86041.

Pressure: PN10.

Sizes: DN10-DN400 (3/8-16 Inch).

DIN 2632 RF Weld Neck Flange, DN10-DN400 - Landee Flange

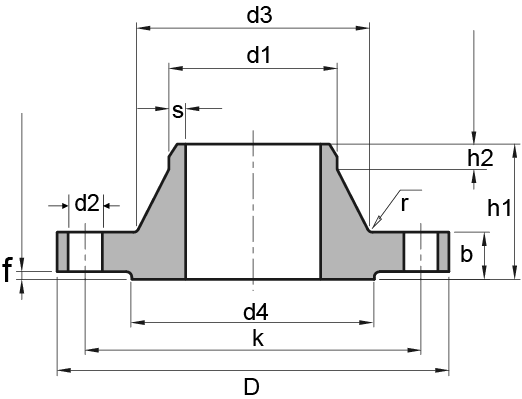

Flange Parameter			Flange Dimension				Neck Size				Hub Size		Screw		Approx. Flange Weight
DN	ISO	DIN	D	b	k	h1	d3	s	r	h2	d4	f	No. of Holes	d2	KG/PCS
10	-	14	75	12	50	28	22	1.8	4	6	35	2	4	11	0.34
10	17.2	-	75	12	50	28	26	1.8	4	6	35	2	4	11	0.34
15	-	20	80	12	55	30	28	2	4	6	40	2	4	11	0.39
15	21.3	-	80	12	55	30	30	2	4	6	40	2	4	11	0.4
20	-	25	90	14	65	32	35	2.3	4	6	50	2	4	11	0.6
20	26.9	-	90	14	65	32	38	2.3	4	6	50	2	4	11	0.6
25	-	30	100	14	75	35	40	2.6	4	6	60	2	4	11	0.76
25	33.7	-	100	14	75	35	42	2.6	4	6	60	2	4	11	0.75
32	-	38	120	14	90	35	50	2.6	6	6	70	2	4	14	1.07
32	42.4	-	120	14	90	35	55	2.6	6	6	70	2	4	14	1.06
40	-	44.5	130	14	100	38	58	2.6	6	7	80	3	4	14	1.21
40	46.3	-	130	14	100	38	62	2.6	6	7	80	3	4	14	1.2
50	-	57	140	14	110	38	70	2.9	6	8	90	3	4	14	1.37
50	60.3	-	140	14	110	38	74	2.9	6	8	90	3	4	14	1.36
65	76.1	-	160	14	130	38	88	2.9	6	9	110	3	4	14	1.69
80	88.9	-	190	16	150	42	102	3.2	8	10	128	3	4	18	2.72
100	-	108	210	16	170	45	122	3.6	8	10	148	3	4	18	3.29
100	114.3	-	210	16	170	45	130	3.6	8	10	148	3	4	18	3.22
125	-	133	240	18	200	48	148	4	8	10	178	3	8	18	4.58
125	139.7	-	240	18	200	48	155	4	8	10	178	3	8	18	4.42
150	-	159	265	18	225	48	172	4.5	10	12	202	3	8	18	5.26
150	158.3	-	265	18	225	48	184	4.5	10	12	202	3	8	18	5.04
200	219.1	-	320	20	280	55	236	5.9	10	15	258	3	8	18	7.95
250	-	267	375	22	335	60	282	6.3	12	15	312	3	12	18	11.16
250	273	-	375	22	335	60	290	6.3	12	15	312	3	12	18	10.87
300	323.9	-	440	22	395	62	342	7.1	12	15	365	4	12	22	14.26
350	355.6	-	490	22	445	62	385	7.1	12	15	415	4	12	22	18.54
350	-	368	490	22	445	62	385	7.1	12	15	415	4	12	22	16.78
400	406.6	-	540	22	495	65	438	7.1	12	15	465	4	16	22	21.25
400	-	419	540	22	495	65	438	7.1	12	15	465	4	16	22	19.1
