Y-Type Hydraulic Control Valve, 2-16 IN, DN50-DN400, 300 PSI

Name: Y-Type Hydraulic Control Valve, 2-16 IN, DN50-DN400, 300 PSI
SKU: LD-20250210-OV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Y-Type Hydraulic Control Valve is available in sizes ranging from 2 to 16 inches (DN50-DN400) and is rated for a working pressure of 300 PSI. Designed with flanged ends for secure installation, the valve ensures efficient flow control in hydraulic systems. It is tested according to API 598 standards, ensuring high quality and reliability. The direct-flow design minimizes pressure loss.

Request a quote

Detail Information

Product Item: Y-Type Hydraulic Control Valve

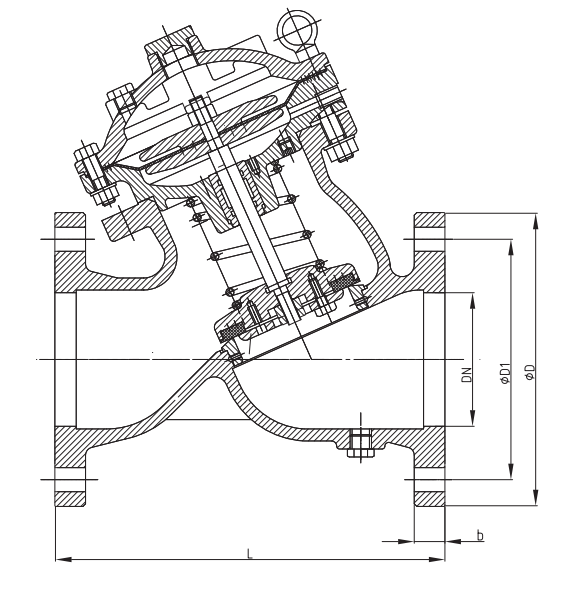

Basic Valve: Y-Type Direct-Flow

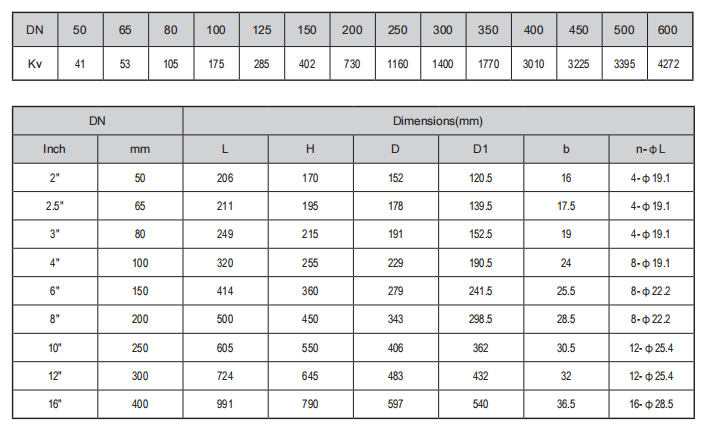

Size Range: 2-16 Inch, DN50-DN400
Working Pressure: 300 PSI
Connection Ends: Flanged, ASME B16.1 Class 125 LB
Temperature Range: 0°C to 80°C
Testing Standard: API 598

Send your message to this supplier

Name *

Company

Email *

Phone

Message *

FAQs

What is OS&Y?

OS&Y stands for Outside Screw and Yoke. This design places the threaded stem outside the valve body, with the yoke supporting the stem. It allows users to visually verify whether the valve is open or closed by observing the stem’s position.

OS&Y gate valves are commonly used in fire protection systems, including sprinklers, hydrants, and standpipes, due to their reliability and clear open/close indication.
