MSS SP-68 Wafer Butterfly Valve, ASTM A536 65-45-12, 300 PSI
Model Number: LD-20250210-BFV-01
Key Specifications / Features
The MSS SP-68 Wafer Butterfly Valve, manufactured according to MSS SP-67 standards, features a ductile iron ASTM A536 Grade 65-45-12 body for robust strength and durability. Designed to handle pressures up to 300 PSI, it ensures reliable performance in a variety of industrial applications. The valve is equipped with a fusion bonded epoxy coated surface for enhanced corrosion resistance.
Detail Information
Product Item: MSS SP-68 Wafer Butterfly Valve
Design Standard: MSS SP-68, MSS SP-67

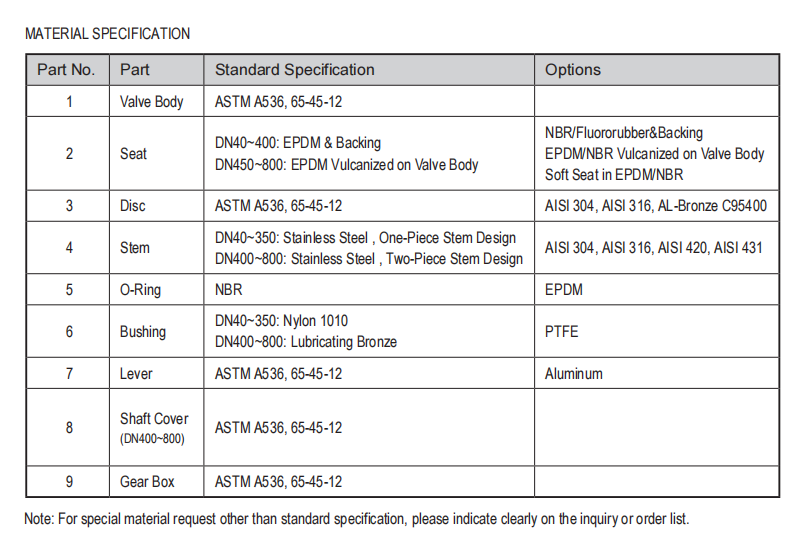

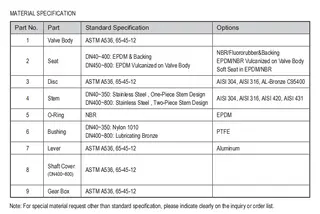

Body Material: ASTM A536 Grade 65-45-12
Working Pressure: 300 PSI (Standard)
175 PSI, 200 PSI and 250 PSI available upon request
Connection Ends: ASME B16.1 Class 125 LB, ASME B16.5 Class 150 LB
Top Flange Standard: ISO 5211, Stem drive by keys, parallel or diagonal square, or flat head
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating (ANSI/AWWA C550)
Supplier Information
XIAMEN LANDEE INDUSTRIES CO., LTD.
Verified Supplier
NO. 321 JIAHE ROAD, XIAMEN, P.R.CHINA 361012
Est. 1994
Certifications:
ISO 9001
