ASTM A536 65-45-12 Swing Check Valve, 2-12 Inch, 300 PSI

ASTM A536 65-45-12 Swing Check Valve, 2-12 Inch, 300 PSI

Key Specifications / Features

The Ductile Iron Swing Check Valve, manufactured with an ASTM A536 Grade 65-45-12 body, is designed for durability and reliability in industrial applications. It features a rubber disc for effective sealing and smooth operation. Available in sizes from 2 to 12 inches (DN50-DN300) and rated for 300 PSI, this valve ensures efficient flow control and backflow prevention. The fusion bonded epoxy coating on the surface provides enhanced corrosion resistance.
Request a quote

Detail Information

Product Item: Rubber Disc Swing Check Valve
Body Material: ASTM A536 Grade 65-45-12
Size Range: 2-12 Inch, DN50-DN300
Working Pressure: 300 PSI (Standard), 200 PSI and 250 PSI available upon request
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating (ANSI/AWWA C550)
Connection Ends: Flanged, ASME B16.1 Class 125 LB

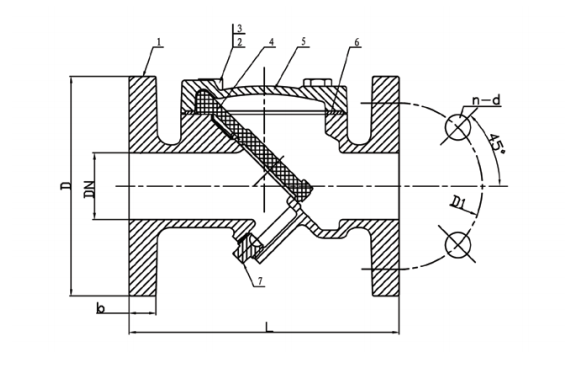

Swing Check Valve Structural Diagram

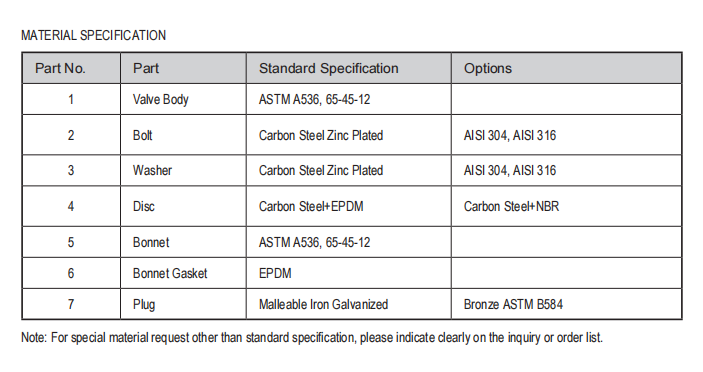

Swing Check Valve Material Specifications

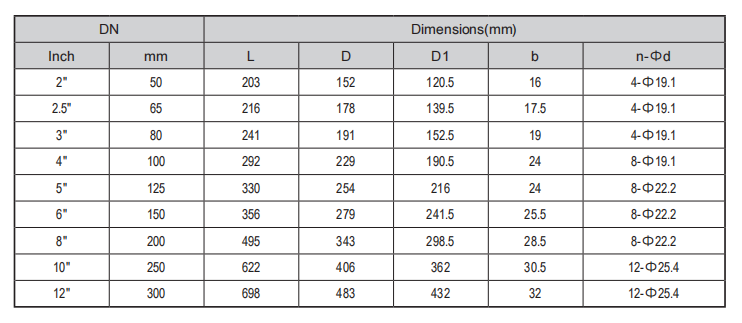

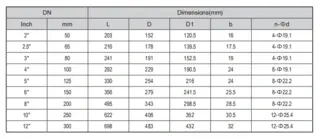

Swing Check Valve Dimensions
