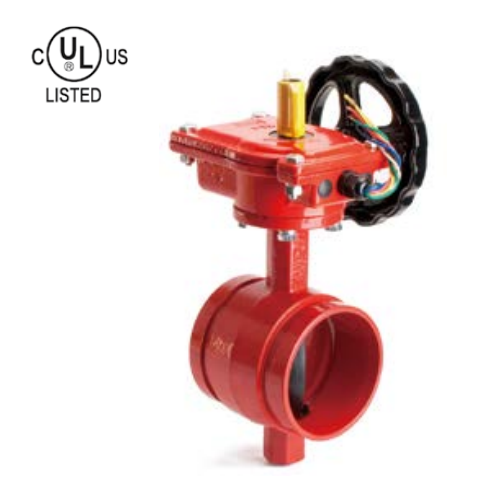

MSS SP-67 Grooved Butterfly Valve, A536 65-45-12, 2-12 Inch
Model Number: LD-20241024-BFV-02
Key Specifications / Features
The MSS SP-67 Butterfly Valve, manufactured in our factory, complies with MSS SP-67 standards and is made from Ductile Iron ASTM A536 Grade 65-45-12. Available in sizes from 2 to 12 inches, these valves are designed to withstand pressure ratings between 175 and 300 PSI. Featuring grooved ends for secure connections, they are coated with fusion-bonded epoxy to enhance corrosion resistance and durability.
Detail Information
Product Item: MSS SP-67 Grooved Butterfly Valve
Body Material: Ductile Iron ASTM A536 Grade 65-45-12
Design Standard: MSS SP-67
Connection Ends: Groove to AWWA C606
Top Flange Standard: ISO 5211
Size Range: 2-12 Inch
Working Pressure: 300 PSI, 175 PSI, 200 PSI and 250 PSI available upon Request
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or Painting upon Request
Stem Drive by Keys, Parallel or Diagonal Square or Flat Head
Supplier Information
XIAMEN LANDEE INDUSTRIES CO., LTD.
Verified Supplier
NO. 321 JIAHE ROAD, XIAMEN, P.R.CHINA 361012
Est. 1994
Certifications:
ISO 9001
