ASTM A536 65-45-12 Butterfly Valve, API 609, 2-32 IN, Flanged
Model Number: LD-20241024-BFV-01
Key Specifications / Features
The Ductile Iron Butterfly Valve, produced in our China plant, complies with API 609 standards and is constructed from ASTM A536 Grade 65-45-12. Available in sizes ranging from 2 to 32 inches, these valves can handle pressure ratings of 175, 200, 250, and 300 PSI. Featuring flanged ends for easy installation, they are coated with fusion-bonded epoxy for enhanced corrosion resistance and durability.
Detail Information
Product Item: API 609 Flanged Butterfly Valve

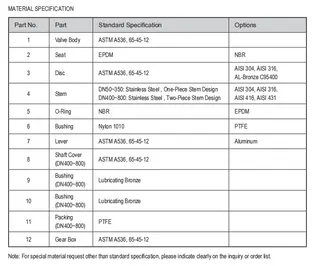

Body Material: Ductile Iron ASTM A536 Grade 65-45-12
Design Standard: API 609
Size Range: 2-32 Inch
Working Pressure: 250 PSI, 175 PSI, 200 PSI and 300 PSI, available upon Request
Face to Face: EN 558 Series 13
Connection Ends: ASME B16.1 Class 125 LB
Top Flange Standard: ISO 5211
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating in Accordance with ANSI/AWWA C550
Stem Drive by Keys, Parallel or Diagonal Square or Flat Head
