Three Piece DBB Ball Valve, API 6D, A182 F316, RTJ, Custom

The Three Piece DBB Ball Valve Supplier offers a trunnion-mounted ball valve, adhering to API 6D standards. Constructed from stainless steel ASTM A182 F316, it provides excellent corrosion resistance and durability. With customized sizes and pressure ratings, RTJ flanged ends, and a gearbox for easy operation, this valve is ideal for high-pressure, high-performance applications, ensuring secure and reliable flow control.

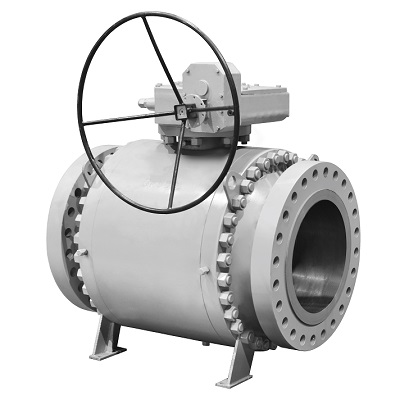

Product Name: Three Piece DBB Ball Valve, Trunnion Mounted
Design Standard: API 6D
Body Material: ASTM A182 F316
Size: Customized
Pressure: Customized
End Connection: RTJ
Operation: Gearbox

Double Block and Bleed (DBB) Valves provide double isolation by integrating two obturators within a single body, offering enhanced safety and performance. They feature a bleed/vent system located between the obturators (body port and ball, gate, or needle valve), which allows for safe venting of trapped fluids. Available in various trunnion ball valve designs, DBB valves come with multiple construction options.
Double Block and Bleed Ball Valves (DBB ball valves) enable a pipe section to be isolated from both sides of the valve, preventing accidental leaks and enhancing safety, particularly in the oil and gas industry. These valves not only ensure strong security but also reduce the need for additional valves, optimizing space and cost efficiency.

Technical Specifications

» Size Range: NPS 1/2-2 Inch (DN15-DN50)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Forged Carbon Steel, Stainless Steel, Duplex, or Other Special Materials (ASTM A105N, A350 LF2, A182 F11, F22, F304, F304L, F316, F316L)
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other special materials
» End Connections: Flanged x Flanged, Flanged x FNPT
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Temperature Range: -46°C to 350°C
» Medium: Water, Gas, Oil, etc.
» Design and Manufacture Standards: API 6D, BS 5351, ASME B16.34
» Face-to-Face (End-to-End) Standard: As per manufacturer's standard
» Flanged Connection Standard: ASME B16.5
» Test and Inspection Standards: EEMUA 182, API 598
» Threaded Ends Standard: ASME B1.20.1
» Fire Safety Certification: API 607, API 6A

Product Features

» DBB Integrated Body with Dual Type Configuration
» Side Entry Forged Steel Valves
» Optional Top-Entry Design Upon Request
» Low Pressure Loss Through the Valve
» Low Actuation Torque for Easy Operation
» Full Bore or Reduced Bore Options
» Corrosion-Resistant Materials in Compliance with NACE MR 0175
» Metal-Sealed Seat Pocket Area Overlay, Seal Area Overlay, or Complete Cladding on Wetted Surfaces (Welded Overlays in Inconel 625, Stainless Steel 316, etc., or Electroless Nickel Plating)
