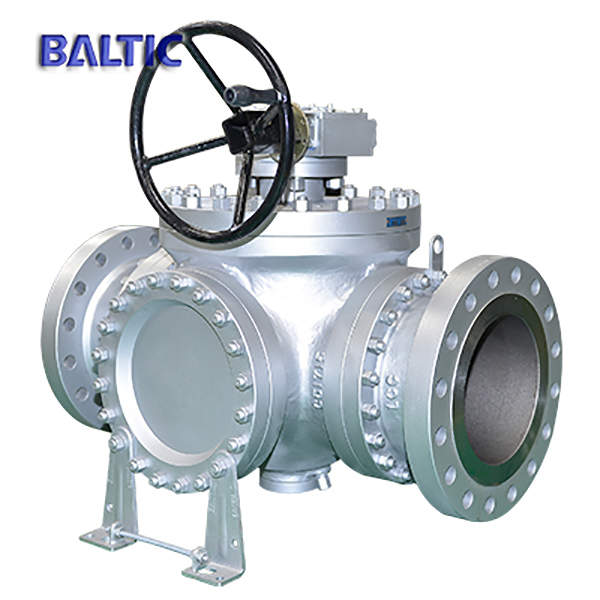

3 Way Top Entry Ball Valve, API 6D, ASTM A105N, RF, Custom

The 3-Way Top Entry Ball Valve is built to API 6D standards, featuring a forged carbon steel ASTM A105N body for enhanced strength and durability. It offers customized sizes and pressure ratings to suit specific requirements, with RF flanged ends for easy installation. This valve is designed for versatile flow control in complex piping systems, ensuring reliable operation in demanding conditions.

Product Name: 3 Way Top Entry Ball Valve
Design Standard: API 6D
Body Material: Forged Steel ASTM A105N
Size: Customized
Pressure: Customized
End Connection: RF

Our three-way top-entry ball valves are available in both L-type and T-type configurations. The L-type (44) three-way ball valve is designed to switch the flow direction of the medium, connecting two perpendicular channels. The T-type (45) three-way ball valve is used for medium diversion, merging, and flow direction switching.
For standard three-way ball valves, we typically use a two-seat design. However, upon customer request, the company can also design and manufacture three-way ball valves with four seats.
Three-way ball valves are widely regarded as the most popular and economical type of multi-port valves. They are commonly used in applications with multiple sources of media or when it is necessary to divert media in two different directions. Depending on the flow direction, the three ports are typically configured as either one outlet with two inlets, or one inlet with two outlets.

Technical Specifications

» Product: Three Way Top Entry Ball Valve
» Size Range: NPS 2-48 Inch (DN50-DN1200)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Special Alloys (ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M)
» Stem Materials: ASTM A479 Type 410, 17-4PH, XM-19, ASTM A182 F316
» Seat Materials: RPTFE, Nylon, Devlon, PEEK, Tek-Fil, TFM
» Ends Connections: Flanged (RF, RTJ), Welded (BW)
» Operation: Lever, Worm Gear, Electric, Pneumatic
» Temperature Range: -46°C to 200°C
» Medium: Water, Gas, Oil
» Standards:
   Design and Manufacture: API 6D
   Face-to-Face (End-to-End) Dimensions: ASME B16.10, API 6D
   Flanged Connections: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79
   Test and Inspection: API 598, API 6D
   Butt Welded End: ASME B16.25

Product Features

» Full Bore or Reduced Bore Options
» Double Block and Bleed (DBB), DIB-1, and DIB-2 Design Variability
» One-Piece Ball and Stem for Precise Positioning
» Anti-Blowout One-Piece Ball/Stem Design
O-Rings and Fire-Safe Packing to Prevent Leakage
» Corrosion-Resistant, Low-Friction Bearings
» Wave Springs for Upstream and Downstream Sealing
» Stainless Steel Sealant Injection Fittings for Emergency Stem or Seat Sealing
» Inline Repairable with a Reasonable Seat Retainer Design
» Minimized Torque Required for Opening and Closing
» Anti-Static Grounding Between Ball, Stem, and Body
» Integral Top Works with Direct Mounting Pad
» Optional Locking Device or Stem Extension
» Emergency Rescue and Valve Lubrication Features
» Low Torque Operation
