Straight Through Diaphragm Valve, Ductile Iron, DN50, PN10

The Straight Through Diaphragm Valve Supplier offers a high-quality diaphragm valve with a BS 5156 and MSS SP-88 standard, featuring a durable DI ductile iron body. It is lined with rubber or fluorine for enhanced chemical resistance. With a 2-inch size (DN50) and a pressure rating of PN10 and Class 150 LB, this valve is built for reliable performance in various industrial applications. Its RF ends ensure secure and efficient connections.

Product Name: Straight Through Diaphragm Valve
Design Standard: BS 5156, MSS SP-88
Body Material: DI Ductile Iron
Lining Material: Rubber/Fluorine
Size: DN50, 2 Inch
Pressure: PN10, Class 150 LB
End Connection: RF
Operation: Manual

Technical Specifications

» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: ANSI Class 125 LB, Class 150 LB, PN6, PN10, PN16
» All Standards: MSS SP-88, BS 5156, ASME B16.34, DIN 3202, ASME B16.1, BS EN 558, ASME B16.5 CL150, EN 1092, EN 12226, ISO 5208, API 598, BS 4504 or equivalents
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Optional Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural Rubber, Butyl, EDPM, Hard Rubber, etc.
» Ends Connections: Flanged RF or FF, Screwed
» Operation: Handwheel, Pneumatic, Electric Operated
» Temperature Range: -29°C to 80°C
» Optional Locking Device Position indicator
» Optional Direct Mounting to ISO 5211
» Regular Bore

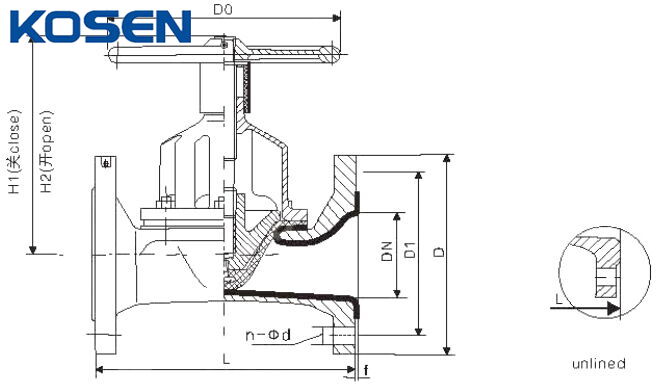

Straight-through Diaphragm Valve Features

The straight-through diaphragm valve features a design where the diaphragm rises when the valve is opened, allowing smooth flow in any direction. When closed, the diaphragm creates a tight seal, ensuring complete closure even in the presence of gravel or fiber in the pipeline. Unlike weir diaphragm valves, this valve requires a diaphragm with greater elasticity, which limits the range of materials that can be used for the diaphragm.

1. Corrosion Resistance

Our diaphragm valves are ideal for applications requiring corrosion resistance. With an extensive range of linings and diaphragms, they can be tailored to suit various needs, providing an effective and economical solution without relying on exotic alloys. Available linings include elastomers and fluoropolymers, specifically designed to combat corrosion in harsh environments.

2. Abrasion Resistance

Thanks to our advanced polymer technology, these diaphragm valves offer superior abrasion resistance. Capable of handling up to 100% solids, the valve, combined with a soft rubber diaphragm, ensures a tight shut-off, meeting the standards of MSS SP-88 and BS EN 12266-1.

3. Leak Tight

Our diaphragm valves are engineered for 100% leak-tight performance in pressure and vacuum services. They maintain leak-tight operation even after thousands of cycles, significantly reducing processing and handling costs by preventing emissions that are typically associated with other valve types. All working parts are isolated from the line media, ensuring positive closure, even with frequent cycling or entrained particulates.

4. Easy Maintenance

The three-part design allows for easy maintenance and actuator retrofitting without the need to remove the valve body from the pipeline. This feature reduces the overall cost of ownership compared to other valve types, making maintenance simple and cost-effective.

5. Suitable for Control

The valve's streamlined flow path, which is free of cavities, enhances its throttling and control capabilities. This design allows for excellent flow control, making it an ideal choice for applications requiring precise regulation.
