Spring Loaded Safety Valve, ASTM A216 WCB, DN100*DN150, PN16

The China Spring Loaded Safety Valve Supplier offers a high-quality DIN standard safety valve, constructed with an ASTM A216 WCB carbon steel body for durability and reliability. Available in DN100 (4 inches) and DN150 (6 inches) sizes, this valve is designed to handle pressures up to PN16. Equipped with RF flanged ends, it ensures secure and leak-free connections, making it ideal for various industrial applications requiring precise pressure control and safety.

Product Name: Spring Loaded Safety Valve
Design Standard: DIN Standard
Body Material: ASTM A216 WCB, Carbon Steel
Size: DN100 * DN150, 4 * 6 Inch
Pressure: PN16, Class 150 LB
End Connection: RF Flanged
Medium: Steam, Air

900 Series DIN standard spring-loaded safety valves are mainly applied in industries such as petroleum and natural gas, chemical, electric, metallurgy, and gas combustion. They serve as overpressure protection equipment, offering high action precision, reliable reseating, fast opening and closing, and convenient operation and maintenance.

Technical Specification

» Normal Size Range: DN20–DN300
» Normal Pressure Rating: PN10–PN40
» Material: Carbon Steel, Stainless Steel, Alloy Steel
» End Connections: RF Flange, Groove Flange
» Working Medium: Steam, Air
» Large throat diameter for high discharge capacity
» Half-seat structure design
» Modular parts for easy assembly and maintenance
» Optional soft seal, corrugated design, or radiating frame structure according to user requirements
» Designed and tested according to DIN standards
» Flanges manufactured to EN1092, nominal pressure PN16–PN40

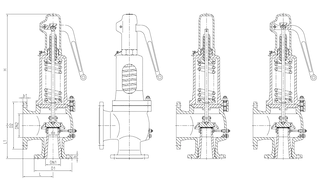

Structural Diagram

Product Features

A full-lift safety valve is one in which the disc lifts sufficiently so that the curtain area no longer restricts the discharge area. The discharge area, and therefore the valve capacity, is determined by the bore area. This occurs when the disc lifts a distance of at least one-quarter of the bore diameter. A full-lift conventional safety valve is often the preferred choice for general steam applications. The opening height of a full-lift safety valve is more than one-fourth of the flow diameter, providing the advantage of significantly increased discharge capacity.
