Single Disc Check Valve, API 594, A105N, DN150, PN16, Wafer

The China Single Disc Check Valve Supplier offers high-quality wafer check valves designed to meet API 594 standards. These short pattern valves are made from forged carbon steel (ASTM A105N), ensuring robustness and reliability. With a 6-inch (DN150) diameter and rated at Class 150 LB and PN16 pressure classes, they provide efficient flow control. The wafer design allows for easy installation between flanges, making them ideal for applications requiring compact and reliable check valves.

Product Name: Single Disc Check Valve, Short Pattern
Design Standard: API 594
Body Material: ASTM A105N
Size: DN150, 6 Inch
Pressure: PN16, Class 150 LB
End Connection: Wafer
Medium: Water, Gas, Oil, etc
Temperature Range: -29°C to 595°C

The Wafer Single Disc Check Valve is designed to automatically prevent backflow in piping systems. The valve disc opens when upstream pressure exceeds downstream pressure, allowing flow from the inlet to the outlet. When the pressure on the inlet side drops below that of the outlet, the disc closes automatically due to fluid pressure, gravity, and other forces, effectively preventing reverse flow. This valve can be installed in both horizontal and vertical orientations; for vertical installations, ensure the flow direction is from bottom to top. Always confirm the correct flow direction during installation.

Technical Specifications

» Product: Short Pattern, Single Disc Wafer Check Valve
» Size Range: NPS 2-24 Inch (DN50-DN600)
» Pressure Rating: Class 150-600 LB (PN10-PN100)
» Materials: ASTM A105, A350 LF2, A182 F304, F304L, F316, F316L
» End Connection: Wafer Type
» Design & Manufacturing Standards: API 594, API 6D, JB/T 8937
» Face-to-Face Dimensions: API 594, API 6D, JB/T 8937, DIN 3202
» Flange Compatibility: ANSI B16.5, DIN 2543–2548, JB/T 9112–9124
» Testing & Inspection: API 598, DIN 3230, JB/T 9092

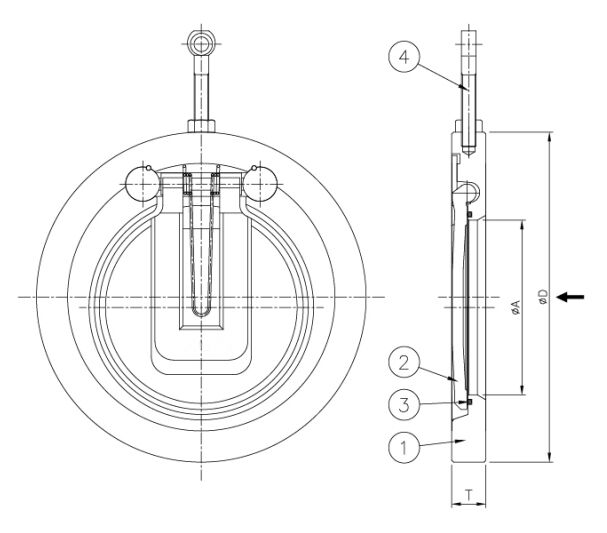

Structural Diagram

Product Features

» Lightweight and compact design
» Soft-seated zero-leakage sealing
» Non-slam operation for quiet and stable performance
» Bubble-tight shutoff
» Disc opens up to 85° to ensure minimal pressure drop
