Self-operated Pressure Regulating Valve, WCB, 5 Inch, 150 LB

Product Name: Self-operated Pressure Regulating Valve
Body Material: ASTM A216 WCB
Size: 5 Inch, DN125
Pressure: Class 150 LB, PN20
End Connection: RF
Flow Characteristic: Quick Open

The self-operated pressure regulating valve operates without external energy, utilizing the energy of the medium to adjust the valve position. The actuator controls the position of the valve core, which in turn regulates the pressure difference and flow at both ends, ensuring stable pressure before or after the valve. This valve offers advantages such as sensitive action, excellent sealing, and minimal pressure set point fluctuations. It is widely used for automatic control in applications involving gas, liquid, and steam medium pressure reduction and pressure relief.
This series includes two types of pressure-regulating valves:

Type B: Pressure adjustment after decompression
Type K: Pressure adjustment before the valve

The pressure adjustment range spans from 15 to 250 kPa and can be configured to meet specific user requirements.

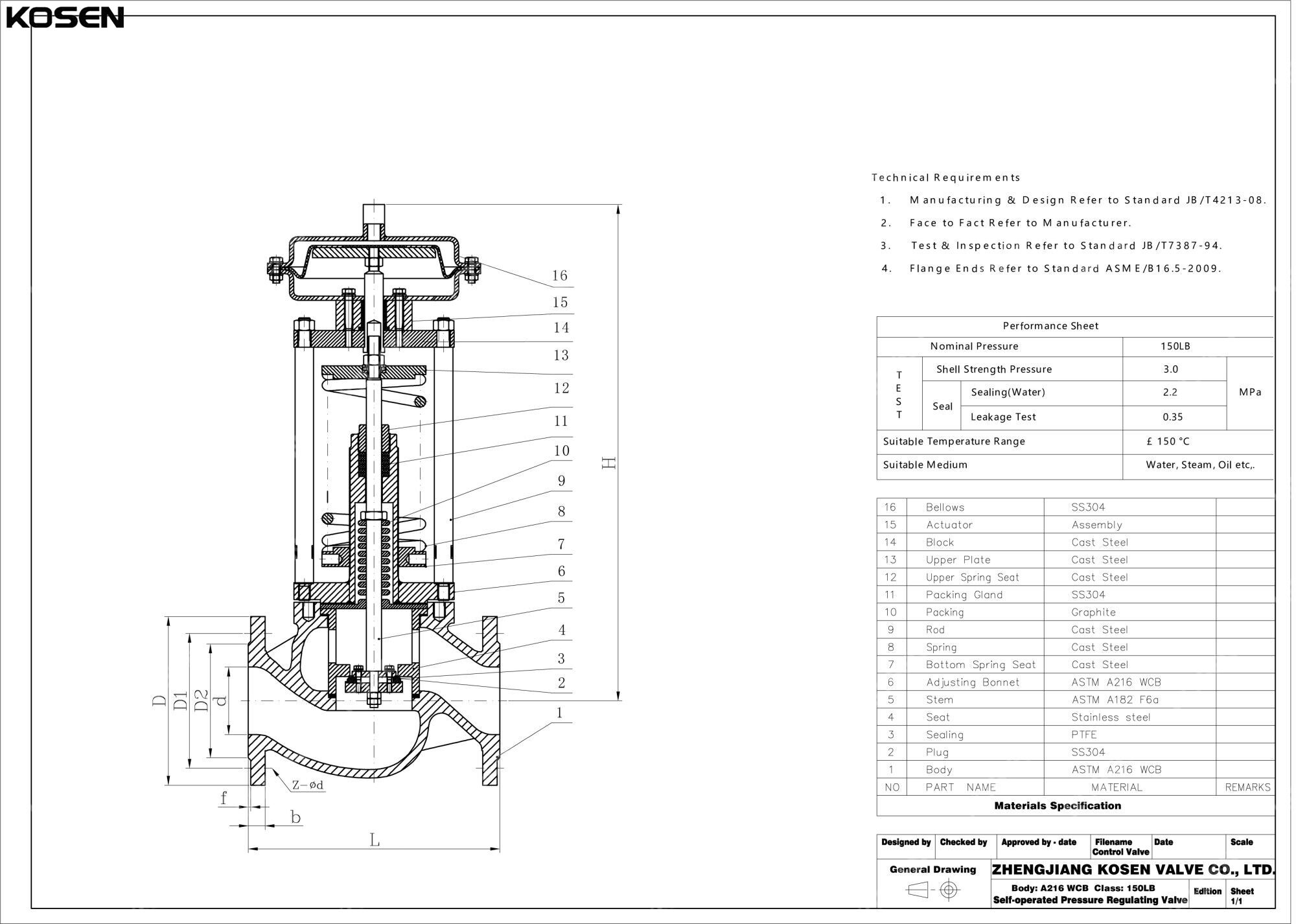

Standard Specifications

» Body Type: Through casting ball body
» Spool Type: Quick-opening spool
» Nominal Diameter: DN20 to DN300 (NPS 3/4-12 Inch)
» Pressure Rating: PN16-PN25, Class 150-300 LB
» Medium: Water, steam, oil, etc.
» Temperature Range: -40 to 450°C
» Body Material: ASTM A216 WCB, A352 LCB, A351 CF8, CF3, CF8M, CF3M, etc.
» Connection Types: Flange FF, RF, RTJ, BW, etc.
» Valve Cover Type: Bolt-pressing type
» Filling Material: V-type PTFE
» Sealing Pad: Metal clip graphite seal
» Actuator: Film self-actuated, piston self-actuated
» Surface Coating: Green acrylic polyamine ester enamel
